Applications
1. Digital TV
2. Plasma Display
3. LCD
4. High Definition Monitor
5. Audio/Video Receiver
6. Set-Top box
7. Projector
8. Desk top and notebook
9. DVD Players/Recorder
10. DV
11. DSC
12. Game box
Features and Benefits
1. Compliance with HDMI specification 1.4 revision.

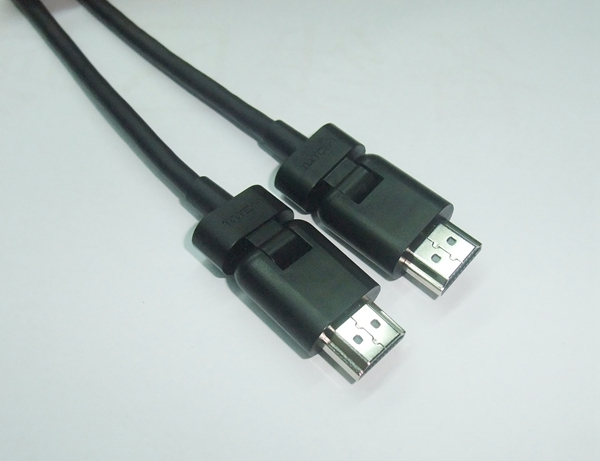

2. Connects between displays and signal sources, swivel 180 degree at both end of connectors
3. Via a single cable, HDMI dramatically simplifies cabling, reduce cost and helps provide consumers with the highest-quality home theater
experience.
4. HDMI is a 3.4Gbps (3.4 Gigabits per second) or higher speed channel, allowing uncompressed digital video at up to 1080 (1080 lines progressive
scan) video with multi channel audio and control signals to be transmitted from device to device.
5. For existing DVI equipped products, HDMI is closely related to DVI. Various DVI-HDMI and HDMI – DVI converters are already available, allowing
the two standards to work seamlessly together.
6. Full shield coverage protects against harmful EMI/RFI interference
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Requirement:
Mating Force: 44.1 N maximum.
Unmating Force: 9.8N(1.0kg) min,39.2N(4.0kg) max
.
Electrical Performance
1. Contact Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
40 Volts AC (RMS.) continuous maximum, on any signal pin with respect to the shield.
3. Contact Resistance
Initial Contact resistance excluding conductor resistance:10 milliohms maximum
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
Unmated connectors 100 Mohm minimum.
Product Environmental Compliance
RoHS 2.0: RoHS 2.0 Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
|
