1.Monitor

    2.CD-ROM

    3.Audio Input/Output System

    4.Modem

    5.Keyboard

    6.Mouse

    7.Scanner

    8.Printer

Features and Benefits

    The Third Generation USB 3.0 maximum data rate of 5Gbps,downward compatible with USB1.0/1.1/2.0.

Mechanical Performance

    1. Mating Force and Unmating Force

       Condition: EIA 364-13, at a max rate of 12.5mm per minute.

       Requirement:

       Mating Force: 35N max.

       Unmating Force: USB-A:10N min initial.

     2. Durability

       Condition: EIA 364-09 at a max rate of 200 cycles per hour

       Requirement:

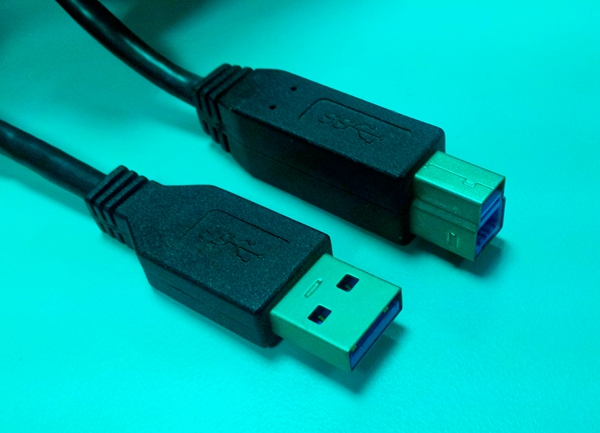

       USB 3.0 A plug1500 cycles, USB 3.0 B plug 1500 cycles, No physical damage

Electrical Performance

1. Contact Resistance

          30 mΩ (Max) initial for VBUS and GND contacts.

          50 mΩ (Max) initial for all other contacts.

      2. Dielectric Withstanding Voltage 100VAC/min.

         No flashover, no spark over, no excess leakage and no breakdown.

      3. Insulation Resistance

        100M ohm min

      4. Differential Impedance

         Mated area 90 +/- 15 ohm, cable area 90 ohm +/-7 ohm

    5. Differential-to-Common-Mode Conversion

         ≤-20dB@100MHz to 7.5GHz

      6. Differential Near-End Crosstalk Between SuperSpeed Pairs

       USB 3.0 Standard-A connectors: 0.9%

       USB 3.0 Standard-B connectors: 1.8%

7. Signal Attenuation

        USB Spec 3.0 section see the following as upper limit

         100 MHz, -1.5 dB,

       1.25 GHz, -5.0 dB,

         2.5 GHz, -7.5 dB,

7.5 GHz, -25 dB.

Product Environmental Compliance

RoHS2.0: RoHS 2.0 Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed

Packing

Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
