Applications
Digital TV
Plasma Display
LCD
High Definition Monitor
Audio/Video Receiver
Set-Top box
Projector
Desk top and notebook
DVD Players/Recorder
DV
DSC
Game box
Features and Benefits
1. Compliance with HDMI specification 1.4 revision.
2. Connects between displays and signal sources
3. Via a single cable, HDMI dramatically simplifies cabling, reduce cost and helps provide consumers with the highest-quality home theater experience.
4. HDMI is a 3.4Gbps (3.4 Gigabits per second) or higher speed channel, allowing uncompressed digital video at up to 1080 (1080 lines progressive scan) video with multi channel audio and control signals to be transmitted from device to device.
5. For existing DVI equipped products, HDMI is closely related to DVI. Various DVI-HDMI and HDMI – DVI converters are already available, allowing the two standards to work seamlessly together.
6. Full shield coverage protects against harmful EMI/RFI interference.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

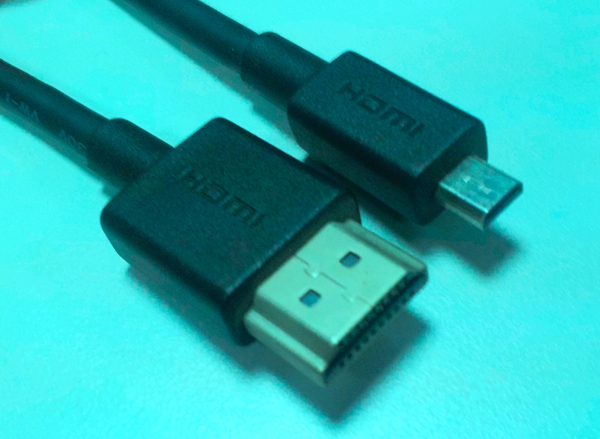

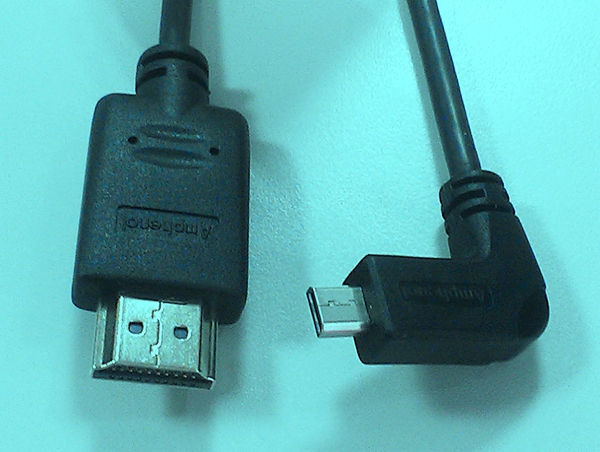

Type A:
Mating Force: 44.1 N maximum.
Unmating Force: 9.8N(1.0kg) min,39.2N(4.0kg) max
Type D:
Mating Force: 44.1 N maximum.
Unmating Force: 5N min,25N max and after5,000 cycles mating,3N min,25N max
Electrical Performance
1. Contact Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
40 Volts AC (RMS.) continuous maximum, on any signal pin with respect to the shield.
3.Contact Resistance
Initial Contact resistance excluding conductor resistance:10 milliohms maximum
4 Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5 .Insulation Resistance
Unmated connectors 100 Mohm minimum.
Mated connectors 10 Mohm minimum.
Signal Integrity
|
