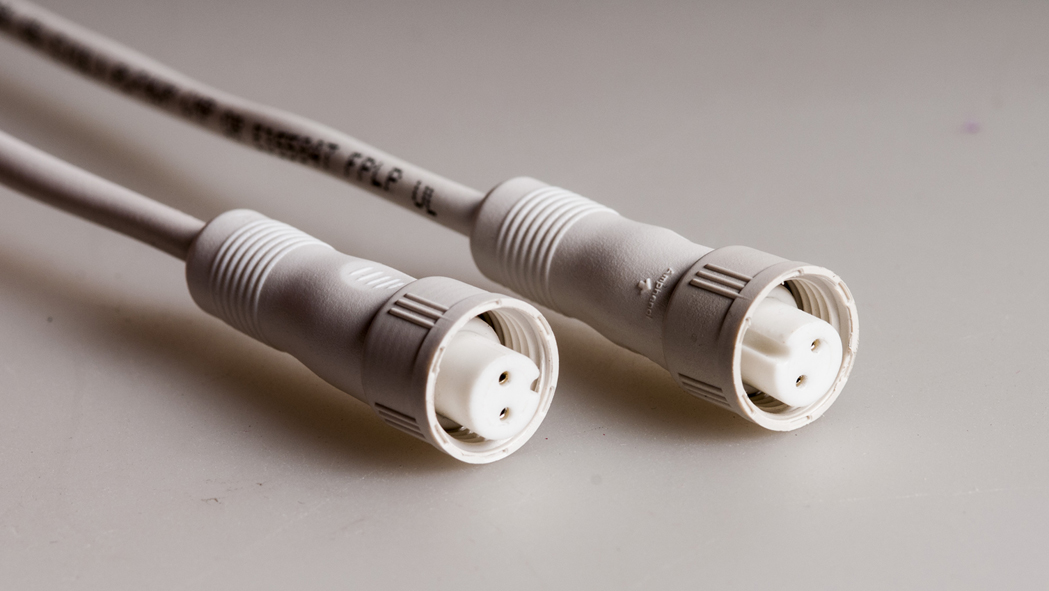

M11 Female to Open
Part Number: RWHHW-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Sealiable@R M11 Female to Open Cable Assembly
Series：Waterproof Cable Assembly
Cable Length：NA
Cable Spec：2C*20AWG FT6 White PVC. 2C*0.5 SQ MM CCC cable is optional.
Lock to Mating Part： By Screw
Plating：Tin 75u” min over Ni 100u” min
Color: White. Black is optional.
Environmental Compliance：RoHS
Flammability for plastic：Thermoplastic UL94 V-0, UL cable FT6

M11 Female to Open

Part Number: RWHHW-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Sealiable@R M11 Female to Open Cable Assembly
Series：Waterproof Cable Assembly
Cable Length：NA
Cable Spec：2C*20AWG FT6 White PVC. 2C*0.5 SQ MM CCC cable is optional.
Lock to Mating Part： By Screw
Plating：Tin 75u” min over Ni 100u” min
Color: White. Black is optional.
Environmental Compliance：RoHS
Flammability for plastic：Thermoplastic UL94 V-0, UL cable FT6

Applications

1. LED Lighting

2. Intelligent water meter



Features and Benefits

1. Meets IP67 protection degree of IEC60529



Mechanical Performance

1. Ambient temperature range: -20 oC ~ +75 oC/-40 oC ~ +105 oC

2. Mated cycle :Min.500 times

3. Terminal retention force: Min.30G



Electrical Performance

1. Current Rating : 3A

2. Voltage Rating: 250V

3.  Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown

4. Insulation Resistance: 5 MOhm minimum.

5. Contact resistance: Max 5mOhm



Material Property

1. Female terminal: Cu Alloy

2. Insulator: Thermoplastic

3. Waterproof seal: Silicon rubber



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
