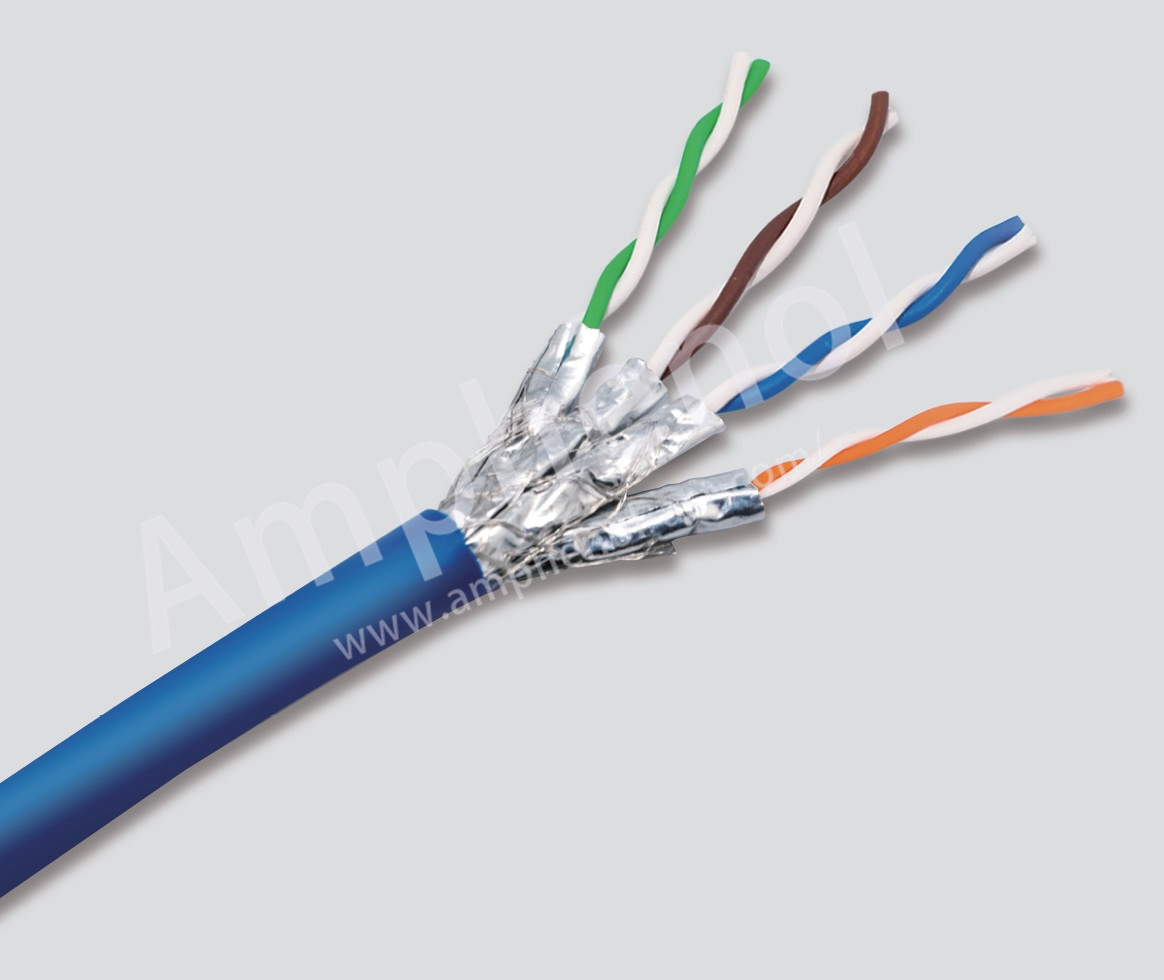

Communication cable
|
• Category 5E, 6, 6A, 7 and 7A
• U/UTP, F/UTP, F/FTP and S/FTP type are optional, metal foil and braid provide good protection from EMI noise.
• Diverse color, AWG, flame retardant rating CM, CMR, CMX and CMP are optional
Note: please consult our project management engineer for minnimum order quantity.
|
Communication cable
• Category 5E, 6, 6A, 7 and 7A
• U/UTP, F/UTP, F/FTP and S/FTP type are optional, metal foil and braid provide good protection from EMI noise.
• Diverse color, AWG, flame retardant rating CM, CMR, CMX and CMP are optional
Note: please consult our project management engineer for minnimum order quantity.
|
|
Feature
1. High transmission performance
2. High quality of safety property
3. U/UTP, F/UTP, F/FTP and S/FTP type are optional, metal foil and braid provide good protection from EMI noise.
4. Diverse color, AWG, flame retardant rating CM, CMR, CMX and CMP are optional
5. Compliant to electrical standard ANSI/TIA-568-C.2, flame test standard UL1685, material and construction UL 444
Applications
1. Structure cabling for cross-connect cable.
2. Transmission of digital and analogue for data, video and audio applications.
3. 10 / 100 / 1G / 10G Base-T IEEE 802.3 i / u / ab / an.
4. CDDI / FDDI / ATM / Token Ring.
5. IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
6. Limit Power -LP UL POE Safety standard.
7. HDBaseT 2.0 standard.
8. EtherCAT Industrial standard.
9. LAN, Server, Switch, Router, Data center, Intelligent security
Performance Requirements
1. ANSI/TIA-568-C.2
2. Temperature: 75⁰C
3. Spark test: 2.5KV DC
4. Dielectric strength: 1.5KV AC for 2s
5. Insulation resistance: min. 5000 Mohm.km
6. AC leakage current through overall jacket: max. 10mA (1.5KV AC)
7. Cold bend: -20⁰C for 4 hours, mandrel diameter per UL444
