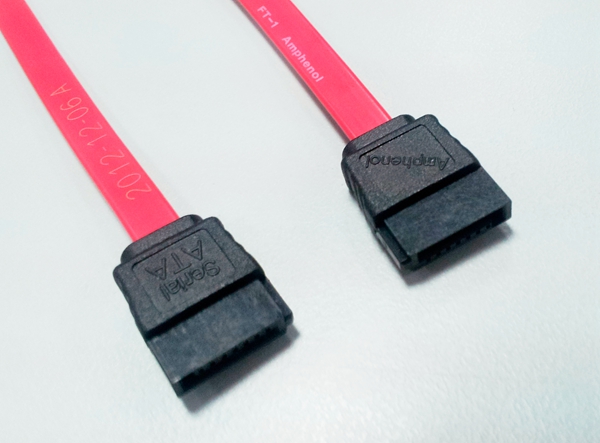

Applications
Data/Communications
1.Independent Disks
2.CD driver
3.Workstations
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 6 Gbps.
2.Meet SATA 3.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13, insert and extract at a speed of 12.5mm/minute
Mating Force: 45 N maximum
Unmating Force: 10 N minimum
Durability:
Condition: EIA 364-09.
Mated and Unmated connector for 50cycles at a rate of 200 cycles per hour.
There shall be no physical damage and shall meet requirements of subsequent test.
Electrical Performance
1. Contact Resistance
Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV maximum. Open circuit at 100mA maximum.
30 mohm maximum, initial per contact mated pair. 15 mohm maximum, after stress per contact mated pair.
2. Dielectric Withstanding Voltage
Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies.
The dielectric shall withstand 500 VAC for 1 minute at sea level. There shall be no flashover, no spark over, no excess leakage and no breakdown.
3. Insulation Resistance
Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies.
The IR shall be 1000 Mohm minimum.
Product Environmental Compliance
RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
|
