Applications
DP Signal Enhancer

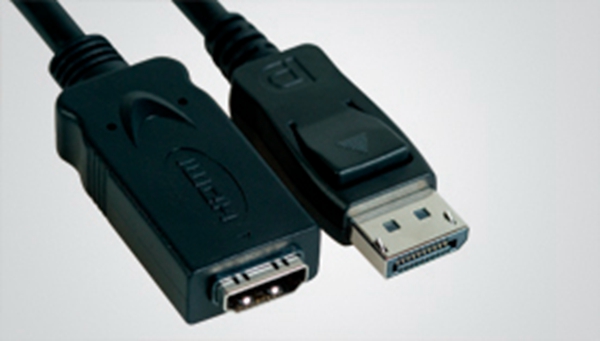

DP to HDMI Signal Transducer
Features and Benefits
Transfer Dual Mode DP(Dual Mode DisplayPort) signal to HDMI signal
Dual Mode DP(Dual Mode DisplayPort) signal enhancer
Compliance with DP 1.1 Sepecification
Compliance with HDMI 1.4 Sepecification
Mechanical Performance
Mating Force and Unmating Force
1. DP plug connector
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Requirement:
Mating Force: 44.1 N maximum.
Unmating Force(no latches): 9.8N(1.0kg) min,39.2N(4.0kg) max
2. HDMI A type receptacle
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Requirement:
Mating Force: 44.1 N maximum.
Unmating Force: 9.8N(1.0kg) min,39.2N(4.0kg) max
Product Environmental Compliance
RoHS 2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
|
