Applications

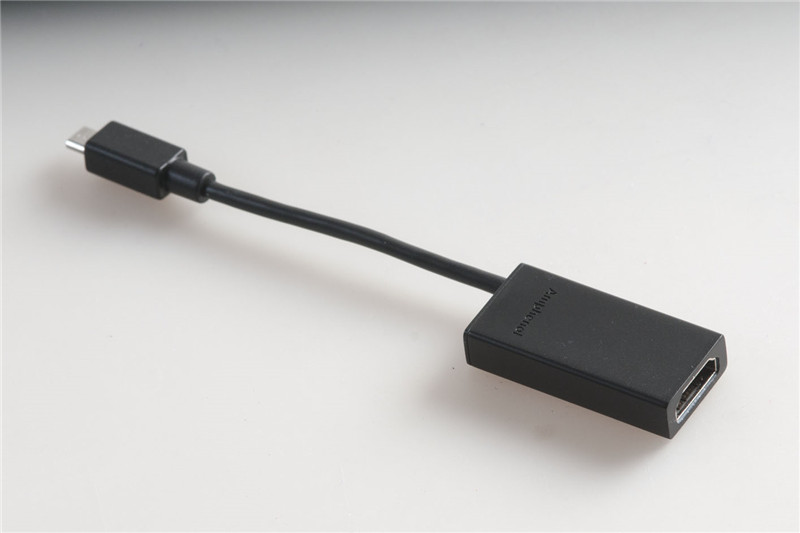

  myDP application: mobile phone, pad and so on

Features and Benefits

1. Transmission rate 6.75 Gbps.

2. Comply with myDP specification.

Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 35N maximum.

Unmating Force: 8-25 N minimum.

Electrical Performance

1. Contact Resistance

30mohm max. initial, 15mohm maximum after stress test.

       2. Working voltage and current

           5V 300mA

3. Insulation Resistance

1000 Mega ohms minimum.

Signal Integrity

1. Mated Connector Impedance: 100 ohm±10%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
