Applications
1. Server
2. Data Storage
3. Workstation
Features and Benefits
1. Smaller size connector and cable saves device space
2. Provide four channels signal transmission as per industry standard
2. Data speed: 12Gbps for SAS per channel
2. Meet SAS3.0, Ultraport SlimSAS SFF-8654 specification
Mechanical Performance

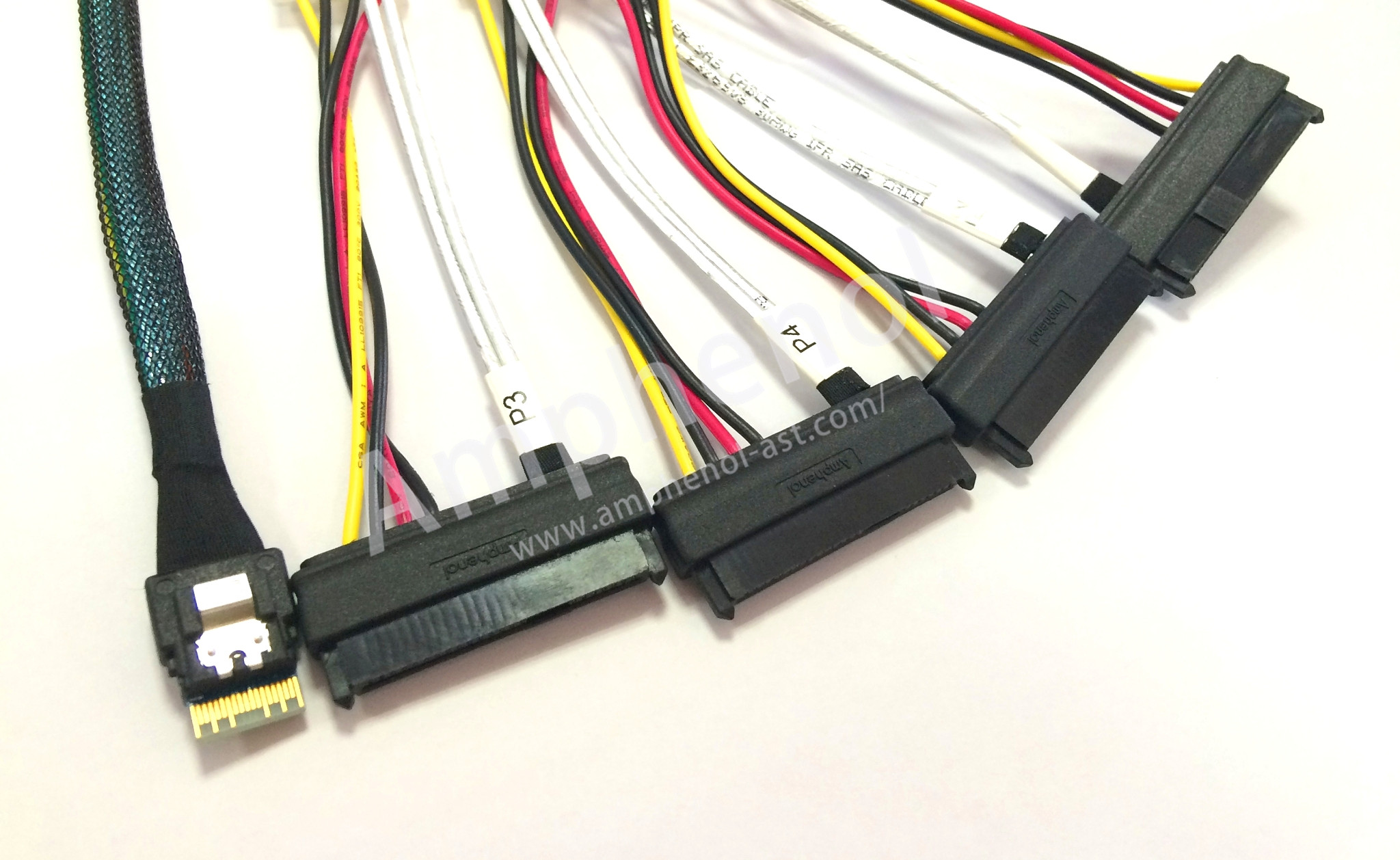

1. Ultraport SlimSAS 4i plug
Mating Force: 150N maximum
Unmating Force: 50N maximum
Rated durability cycles: 250 cycles minimum
2. SAS 22Pos connector
Mating Force: 50N maximum
Unmating Force: 20N maximum
Rated durability cycles: 25 cycles minimum
Electrical Performance
1. Voltage: 30VDC per contact
Ultraport SlimSAS 4i plug: 80mohm max. initial, 20mohm maximum after stress test.
SAS 22Pos connector: 30mohm max. initial, 15mohm maximum after stress test.
2. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
3. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. Mated Connector Impedance: 100+/-10% ohm
2. Common Mode Impedance: meet SAS3.0 specification
3. Insertion loss: meet SAS3.0 specification,
4. Maximum Crosstalk: meet SAS3.0 specification
Product Environmental Compliance
RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
|
