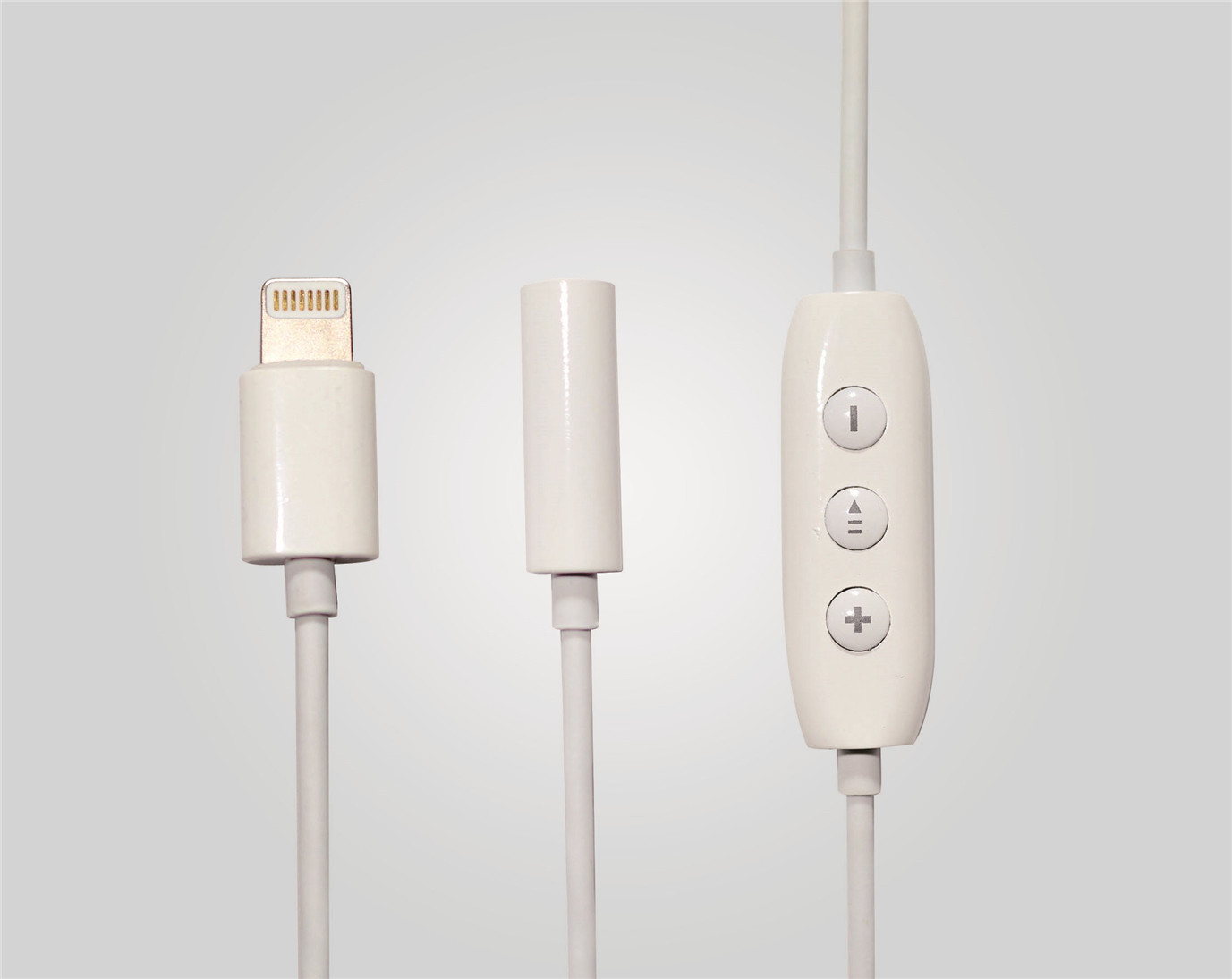

Lightning to Audio Jack White
|
Part Number: LG-001
Product Description: Lightning Plug to Audio Jack White Cable Assembly
Series: Lightning
Cable Length: 0.276meters
Signal and Power Wire Size: 31AWG
Lock to mating part: No
Plating: Au plated on Lightning plug and Ni plated on Audio jack
Color: white insulation of Lightning connector, black insulation of Audio jack, white cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
|
Lightning to Audio Jack White
Part Number: LG-001
Product Description: Lightning Plug to Audio Jack White Cable Assembly
Series: Lightning
Cable Length: 0.276meters
Signal and Power Wire Size: 31AWG
Lock to mating part: No
Plating: Au plated on Lightning plug and Ni plated on Audio jack
Color: white insulation of Lightning connector, black insulation of Audio jack, white cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
|
|
Applications
-
iPhone
-
iPad
-
iPod touch
-
Earphone
Features
and Benefits
-
Support
audio input and output from lightning port of iPhone and iPad , etc
-
Supports
audio control functions including sound volume increment and descrement, audio pause and play.
-
Provide
low cost and perfect audio performance
-
Design
meet Apple Accessory Interface Specification
-
Customized
design satisfy different customers requirements
|
