Applications
1.
360 Camera
system
2.
Display
connection system
3.
Mobile
High-Definition Link(MHD)
4.
Controller
Area Network(CAN)
5.
Rear seat
entertainment system
6.
USB/LVDS
interface connection
7.
Camera
system
Features
and Benefits

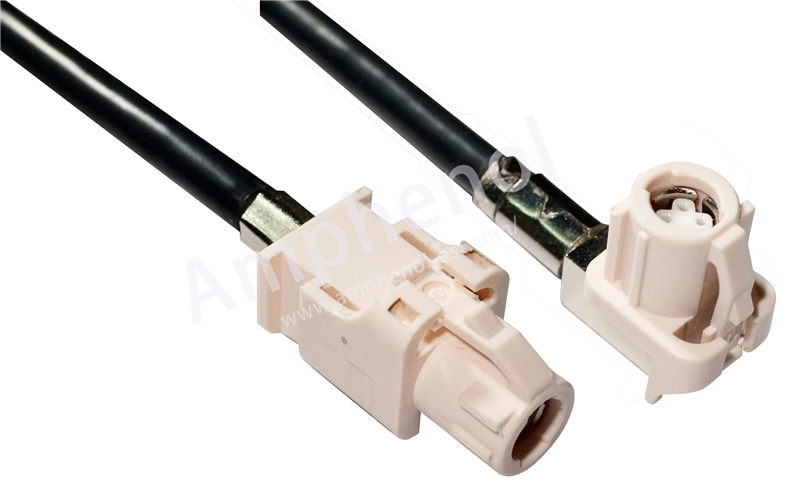

1. 4pin right angle and straight connector for different
application
2. 7 different coding and color for different application or
can be defined according to customer requirements
3. Support high speed data transmission
4. Excellent EMC shielding
5. Operation Temp. -40 ˚C to +105 ˚C
Mechanical
Performance
1. Mating Force: 30N maximum
2. Unmating Force: 110N maximum
3. Durability: 25 cycles min.
Electrical
Performance
1. Contact resistance: 40mohm maximum change after stress
test
2. Dielectric Withstanding Voltage: 500 VDC minimum
3. Insulation Resistance: 100 MΩ minimum
Product
Environmental Compliance
RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
|
