MCIO 24X 148pos

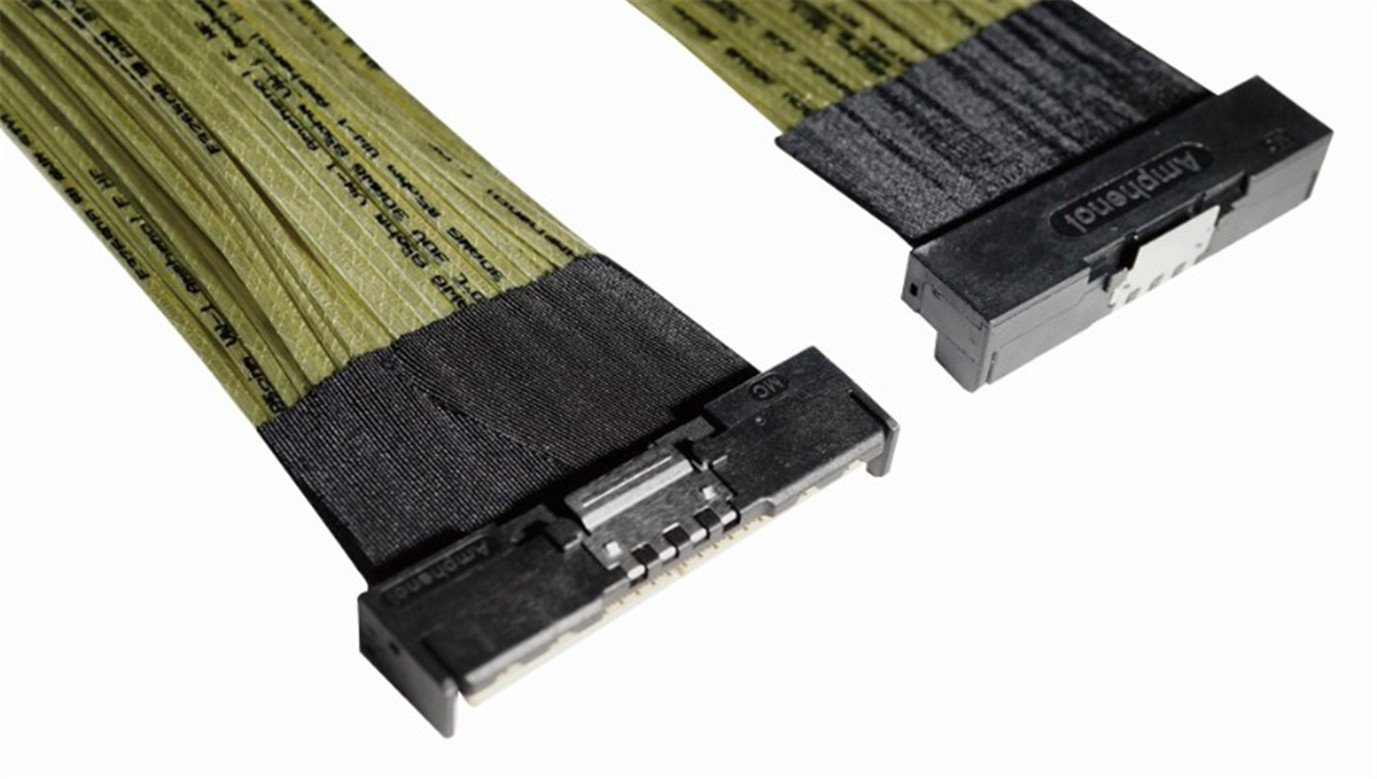

Product Description: MCIO 24X 148pos Straight to Right Angle Cable Assembly
Series: MCIO
Signal Wire Size: 30-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

MCIO 24X 148pos

Product Description: MCIO 24X 148pos Straight to Right Angle Cable Assembly
Series: MCIO
Signal Wire Size: 30-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Applications

1.     Data center & Networking Equipment

2.     Servers/Storage Devices

3.     High Performance Computing (HPC)

4.     Switches/Routers

5.     Wireless Base Stations and Radios



Features and Benefits

1.     Pitch 0.6mm connector design

2.     1.57mm PCB card thickness compatible with PCIe riser card

3.     Straight, right angle and customization cable plug are optional

4.     Pull tab is optional

5.     Supports 85 ohm impedance applications

6.     Supports signaling rates up to PCIe Gen5 and PCIe Gen6

7.     30-34AWG cable

8.     Adopted by SFF(SFF-TA-1016)



Mechanical Performance

1.      Mating Force: 30N maximum

2.      Unmating Force: 49N maximum

3.      Rated durability cycles: 250 cycles minimum



Electrical Performance

1.     Voltage: 30VAC per contact

2.     Current: 0.5A per contact

3.     Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4.     Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5.     Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

        PCIe Gen5 and PCIe Gen6



Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
