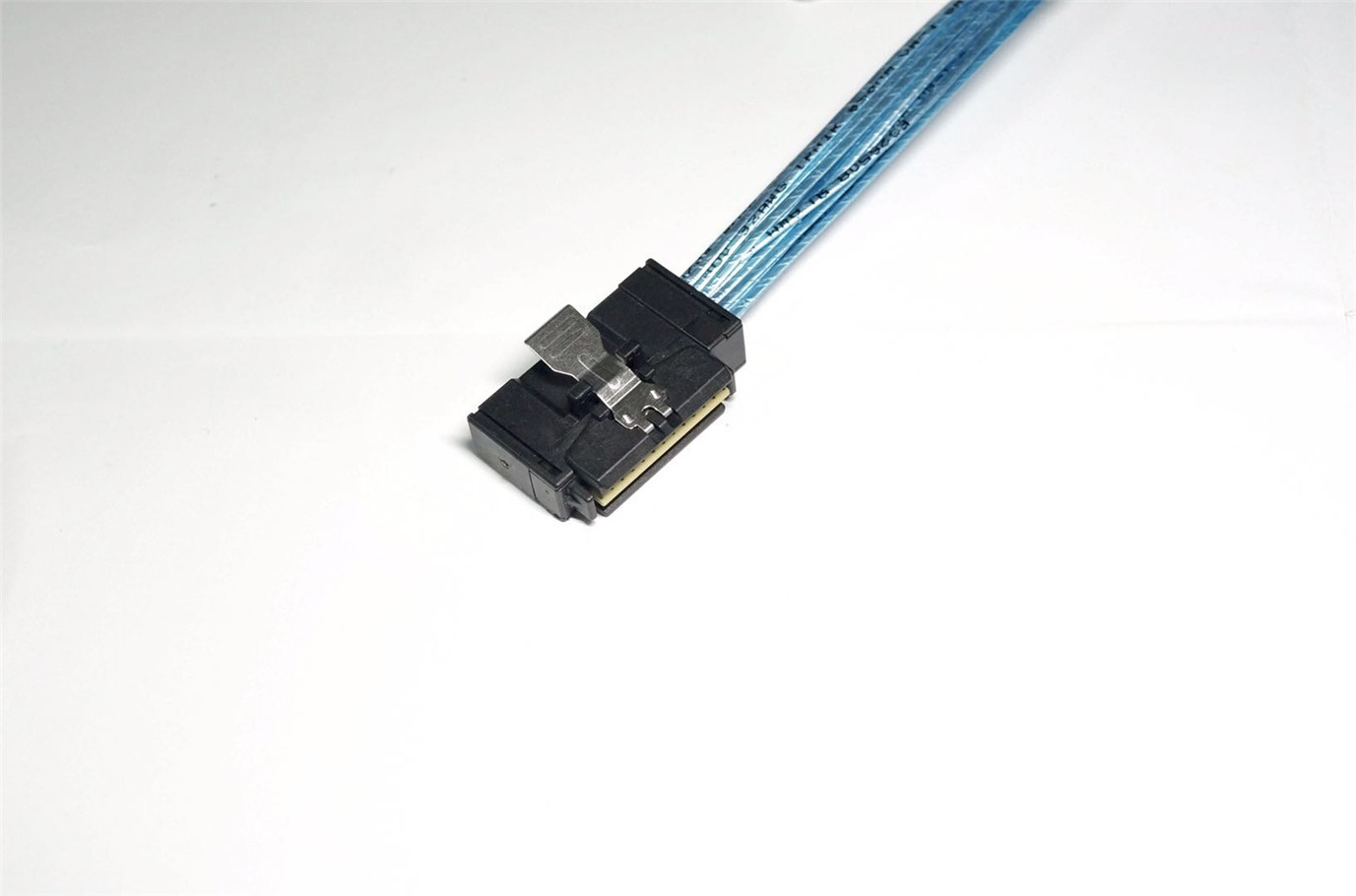

SlimSAS® LP Side-exit 8X With Long Latch
Product Description: Ultraport SlimSAS Low Profile Side-exit 8X With Long Latch Cable Assembly
Series: SlimSAS LP
Cable Length: 0.5 meters
Signal Wire Size: 30AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

SlimSAS® LP Side-exit 8X With Long Latch

Product Description: Ultraport SlimSAS Low Profile Side-exit 8X With Long Latch Cable Assembly
Series: SlimSAS LP
Cable Length: 0.5 meters
Signal Wire Size: 30AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Applications

1. Server

2. Work station

3. Storage system

4. Switch

5. Router

6. Base station



Features and Benefits

1. Connector 0.6mm pitch

2. Long latch help connector release easily and increase layout density on PCB

3. Support 25Gbps, SAS4.0 24Gbps and PCIe 4.0 16Gbps per lane

4. Impedance 85 ohm

5. 34 to 30AWG cables are optional



Mechanical Performance

1. Mating Force: 55.5N maximum

2. Unmating Force: 49N maximum

3. Rated durability cycles: 250 cycles minimum



Electrical Performance

1. Voltage: 30VAC per contact

2. Current: 0.5A per contact

3. Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5. Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1. Mated Connector Impedance: 85+/-10% ohm @25ps RT

2. SCD21: meet SAS4.0 and PCIe 4.0 specification

3. FEXT: meet SAS4.0 and PCIe 4.0 specification

4. NEXT: meet SAS4.0 and PCIe 4.0 specification

5. Insertion loss: meet SAS4.0 and PCIe 4.0 specification



Product Environmental Compliance

1. RoHS2.0: Compliant

2. China RoHS: Yes

3. REACH SVHC: Yes

4. Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
