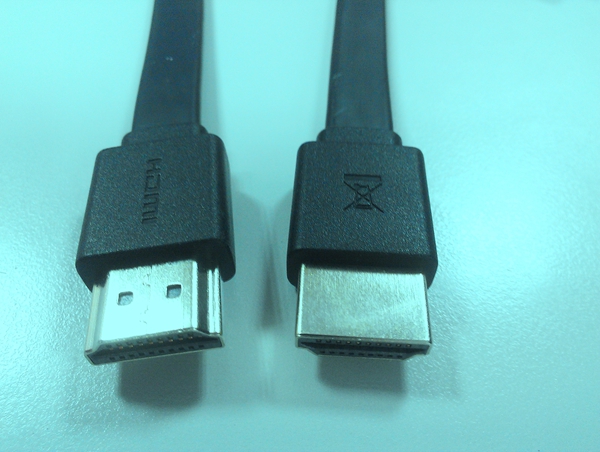

Applications Digital TV Plasma Display LCD High Definition Monitor Audio/Video Receiver Set-Top box Projector Desk top and notebook DVD Players/Recorder DV DSC Game box Features and Benefits 1. Compliance with HDMI specification 1.4 revision. 2. Connects between displays and signal sources 3. Via a single cable, HDMI dramatically simplifies cabling, reduce cost and helps provide consumers with the highest-quality home theater experience. 4. HDMI is a 3.4Gbps (3.4 Gigabits per second) or higher speed channel, allowing uncompressed digital video at up to 1080 (1080 lines progressive scan) video with multi channel audio and control signals to be transmitted from device to device. 5. For existing DVI equipped products, HDMI is closely related to DVI. Various DVI-HDMI and HDMI – DVI converters are already available, allowing the two standards to work seamlessly together. 6. Full shield coverage protects against harmful EMI/RFI interference. Mechanical Performance Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute. Requirement: Mating Force: 44.1 N maximum. Unmating Force: 9.8N(1.0kg) min,39.2N(4.0kg) max Electrical Performance 1. Contact Current Rating 0.5Amperes maximum per pin when mated. 2. Voltage Rating 40 Volts AC (RMS.) continuous maximum, on any signal pin with respect to the shield. 3. Contact Resistance Initial Contact resistance excluding conductor resistance:10 milliohms maximum 4. Dielectric Withstanding Voltage 500 VAC for 1 minute no breakdown. 5. Insulation Resistance Unmated connectors 100 Mohm minimum. Mated connectors 10 Mohm minimum. Signal Integrity 1. Mated Connector Impedance: 100 ohm±15% 2. Cable Absolute Impedance: 100 ohm±10% 3. Cable Intra-Pair Skew: 112ps max 4. Cable Inter-Pair Skew: 1.78ns max 5. Far-end Crosstalk: <-20dB
|
