Consumer Electronics

The application mainly includes mobile device and audio/video equipment.

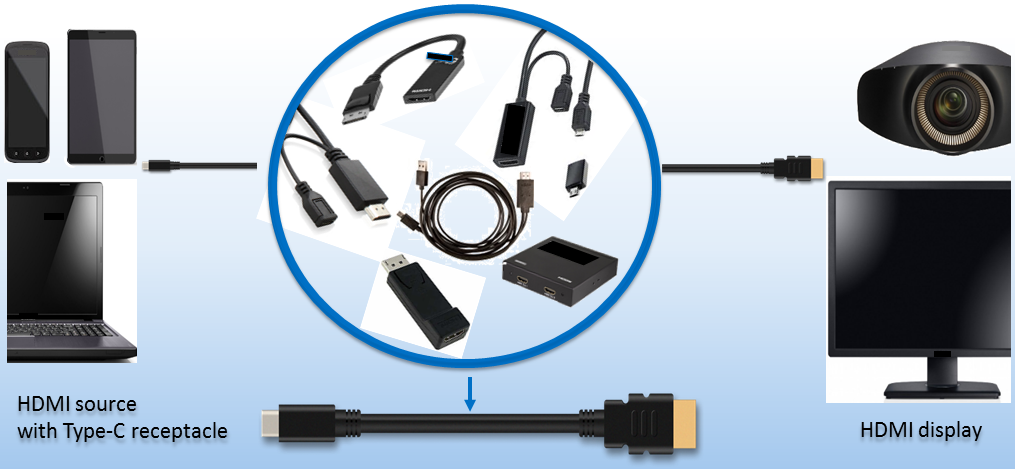

With higher speed, smaller size and higher power delivery requirement, connector and cable assembly have been required to meet the performance. As long term member in the industry, Amphenol developed USB2.0/3.0/3.1, Type-C, HDMI, DisplayPort, Lightning cable, adapter and hub for customer various application.

image Intro

Applications

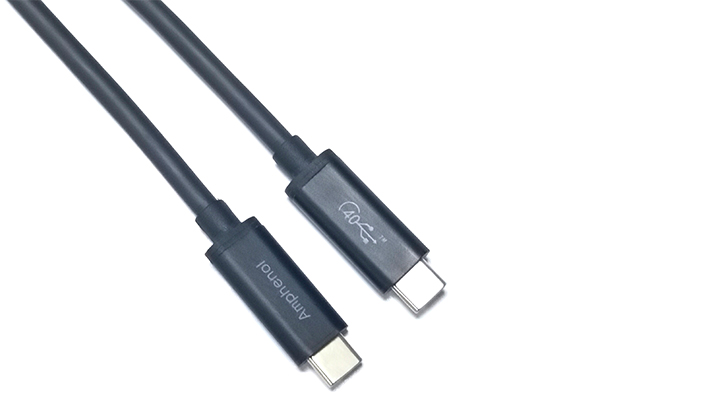

Certified USB 4.0 Type C

Features and Benefits:

1. Compact size suitable for very thin platforms: pitch 0.5mm, max 24pin.

2. Support TBT3 signal.

3. Speed up to 40Gbps through two lanes.

4. Support 5A max. current and 100W power.

5. Support data signal , Video/Audio signal and power transmission.

6. Symmetrical design for either direction plug-able.

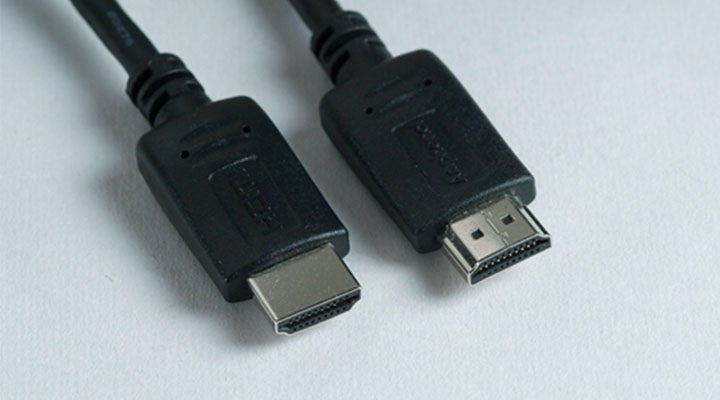

HDMI 2.1

Features and Benefits:

1.Include HDCP (High bandwidth Definition Copy Protection).

2.HDMI Ethernet Channel technology consolidates video, audio, and data streams into a single HDMI cable, enabling high-speed, bi-directional networking at up to 100 Mb/sec Support 3D, 8K resolution.

3. Excellent SI performance: signal rate up to 48 Gb/s.

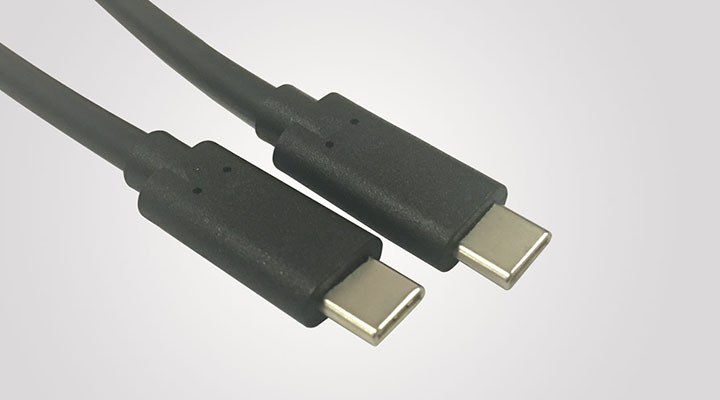

USB Type-C to Type-C

Features and Benefits:

1.Transmission rate: 10 Gbps.

2. Meet Type-C 1.0 specification.

Mechanical Performance:

1.Mating Force and Un-mating Force

2.Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

3.Mating Force: 5N-20N.

4.Un-mating Force: 8N-20N.

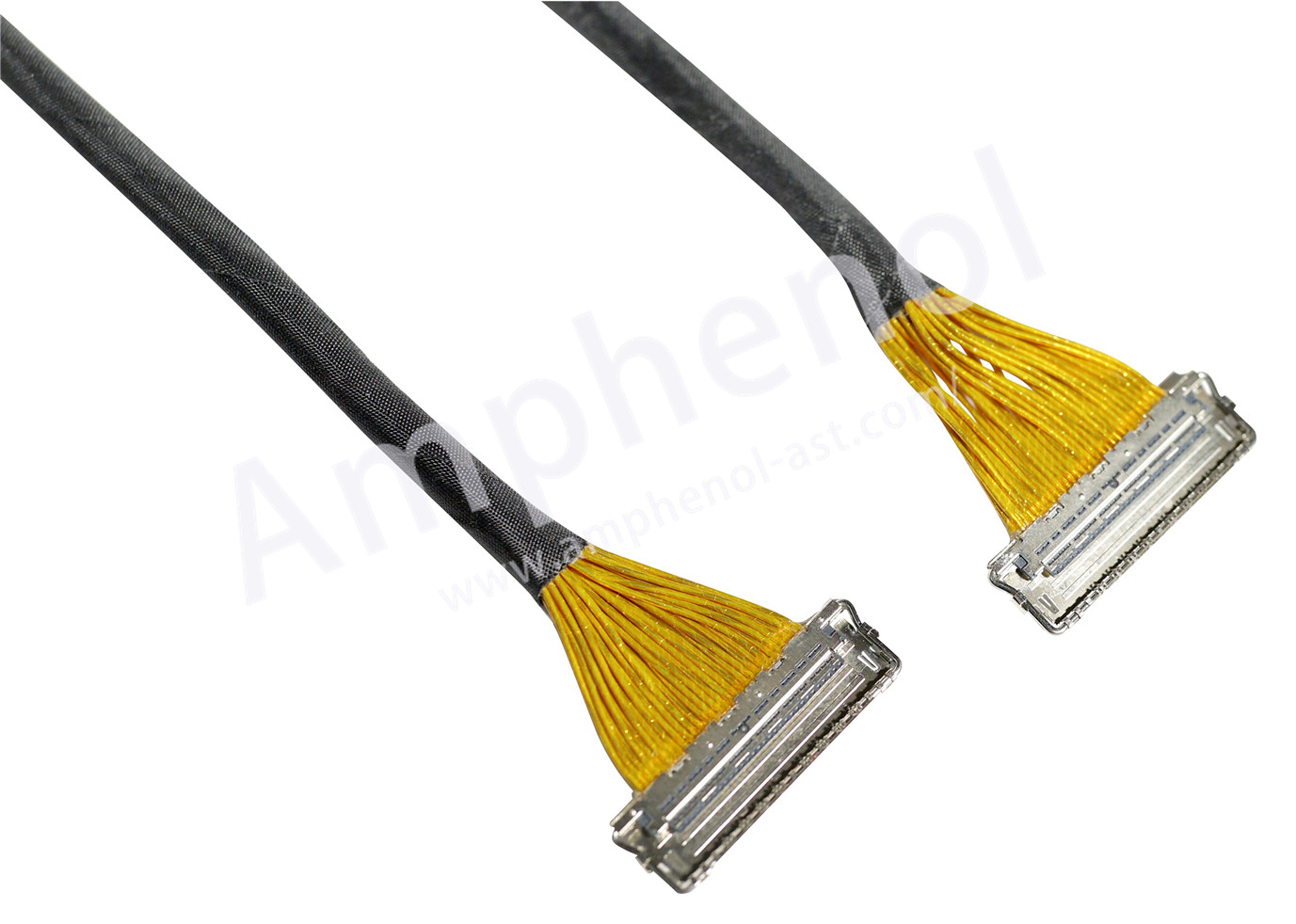

5.Notebook
