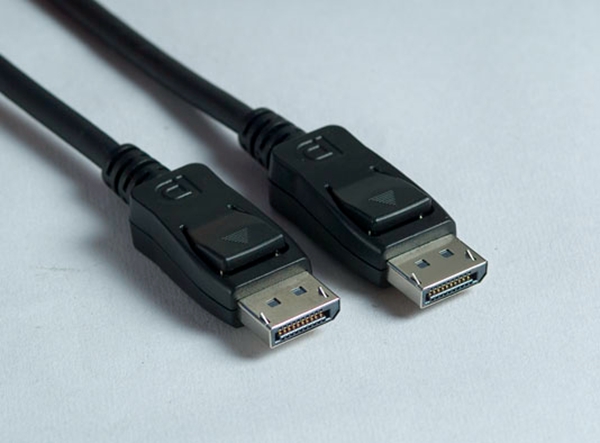

Applications
1.Desktop and notebook
2.Monitors
3.TVs
4.Projector
5.Set-Top Boxes
6.Audio/Video Receivers
7.DVD Players/Recorders
Features and Benefits
1.Higher performance than dual link DVI, total data rate 10.8Gbps
2.Available audio and video for multi-function monitors
3.Embedded clock
4.Connector enables support for DVI and HDMI via simple adapter
5. Enables new “Direct Drive” monitor category
6. Enable greater integration on both sides of the interface to reduce the cost of digital displays
7. Provide scalable performance in terms of resolution, color depth, and refresh rate over fewer wires to support emerging display needs, such as scalable lanes (1-4) for direct drive LCD panel integration
8. Auxiliary channel(1Mbps) enables new user features，for example as transfer channel of voice chatter, VoIP, game control and camera video
9. Available content protection supports high definition movie viewing
10. Enable a common interface approach across both internal and external display connections
11. Enable an extensible, open industry standard without IP (intellectual property) barriers
12. Offer max 3m cable at high bit rate 2.7GHz and max 15m cable at low bit rate 1.62GHz
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Requirement:
Mating Force: 44.1 N maximum.
Unmating Force(no latches): 9.8N(1.0kg) min,39.2N(4.0kg) max
Electrical Performance
1. Contact Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
40 Volts AC (RMS.) continuous maximum, on any signal pin with respect to the shield.
3. Contact Resistance
Contact: change from initial value=30 mΩ max.
Shell: change from initial value=50 mΩ max
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
Unmated connectors 100 Mohm minimum.
Mated connectors 10 Mohm minimum.
Signal Integrity:
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Intra-Pair Skew: 50ps max
4. Cable Inter-Pair Skew: 4ns max
Product Environmental Compliance
RoHS 2.0: RoHS 2.0 Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
|
