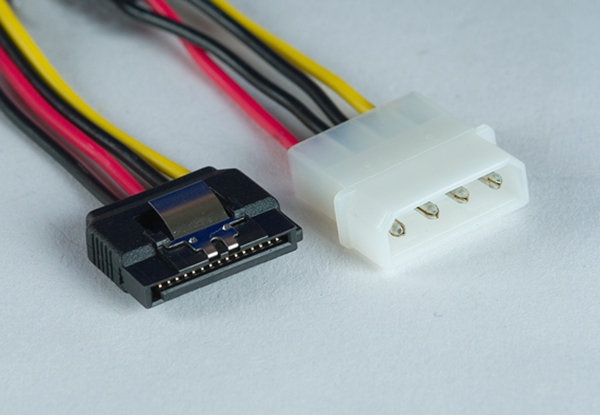

Power SATA STR W/Latch to 4P connector

Part Number: RST15-0276<br/>(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Power SATA STR With Latch to Power 4P Connector
Series: SATA
Cable Length: 0.24 meters
Wire Size: UL1007,18AWG,Tinned Copper, OD:2.1MM
Lock to mating part: With latch for SATA 15Pos end
Plating: Gold Flash over Ni 50u”min
Color: Cable Red、Black、Yellow, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-1

Power SATA STR W/Latch to 4P connector

Part Number: RST15-0276<br/>(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Power SATA STR With Latch to Power 4P Connector
Series: SATA
Cable Length: 0.24 meters
Wire Size: UL1007,18AWG,Tinned Copper, OD:2.1MM
Lock to mating part: With latch for SATA 15Pos end
Plating: Gold Flash over Ni 50u”min
Color: Cable Red、Black、Yellow, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-1

Applications

    Power Supply

1. Independent Disks

2. CD driver

3. Workstations

4. Servers

5. Storage rack



Features and Benefits

1. Meet SATA 3.0 specification

2. Latch lock to mating connector



Mechanical Performance

1. Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 12.5mm/minute.

Mating Force: 45 N max

Unmating Force: 15 N min for cycles 1 through 5. 10N min after 50 mating/unmating (at rate of 200cycles per hour) cycles.

2. Durability:

Condition: EIA 364-09. Mated and Unmated connector for 50cycles at a rate of 200 cycles per hour.

No physical damage and shall meet requirements of subsequent test.



Electrical Performance

1. Contact Resistance

Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV maximum. Open circuit at 100mA maximum.

30 mohm max, initial per contact mated pair. 15 mohm max, after stress per contact mated pair.

2. Dielectric Withstanding Voltage

Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies. The dielectric shall withstand 500 VAC for 1 minute at sea level.

No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance

Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies.

The IR shall be 1000 Mohm min.



Signal Integrity:

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25~ 40 ohms

5. Insertion loss: -6dB max

6. Crosstalk: -26 dB

7. Rise Time:85 ps

8. Propagation Delay Skew: 10 ps max



Product Environmental Compliance
