Applications

1.  Monitor

2.  CD-ROM

3.  Server

4.  Desktop

5.  Scanner

6.  Printer

Features and Benefits

The Third Generation:USB 3.0 maximum transfer rate of 5Gbps,downward compatible with USB1.0/1.1/2.0.

Mechanical Performance

        1. Mating Force and Unmating Force

            Condition: EIA 364-13,

            at a max rate of 12.5mm per minute.

            Requirement:

            Mating Force: 35N max.

            Unmating Force: USB-A:10N min initial,Internal USB3.0:15N min.

        2. Durability

              Condition: EIA 364-09

      at a max rate of 200 cycles per hour

           Requirement:

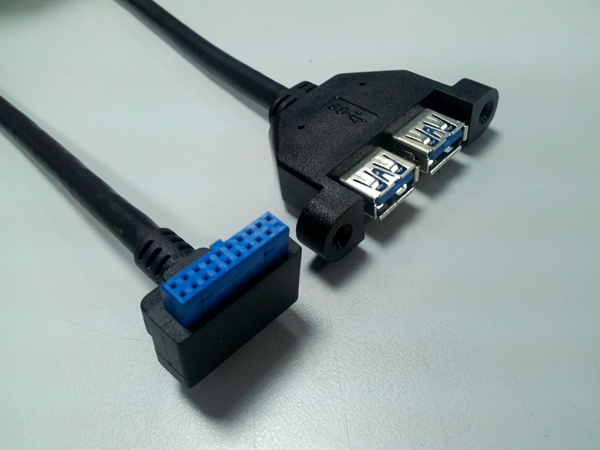

          USB 3.0 A FEMALE,1500 cycles. ; INTERNAL USB3.0 25 cycles.

         No physical damage

 Electrical Performance

          1. Contact Resistance

30 mΩ (Max) initial for VBUS and GND contacts.

50 mΩ (Max) initial for all other contacts.

          2. Dielectric Withstanding Voltage 100VAC/min.

     No flashover, no spark over, no excess leakage and no breakdown

          3.Insulation Resistance

     100M ohm min

          4.Differential  Impedance

    90 ohm +/-7% for cable

               78~105 ohm for conn

          5. Cable Propagation Skew

 15ps for intra-pair Max

                Internal USB Spec 3.0 section

                See figure 1 as upper limit

                2.5 GHz, -3.0 dB,

                7.5 GHz, -14 dB.

Product Environmental Compliance

RoHS2.0: Meet RoHS 2.0 Compliance

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed
