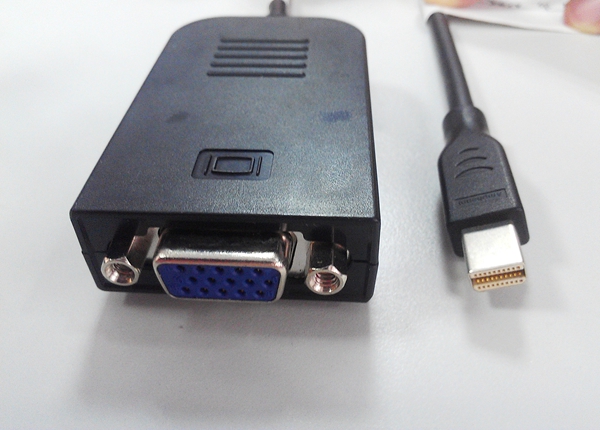

Mini DP plug to VGA receptacle
Part Number: 92987-3411-0.5
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Mini DisplayPort Plug to VGA Receptacle(D-sub 15P)
Series: Display port
Cable Length：0.5 meters
Wire Size：34AWG, TINNED COPPER,OD:4.5MM
Lock to Mating Part: With Latch
Plating：Au(15u" min) over Ni(50u" min)
Color: Black
Environmental Compliance: ROHS
Flammability: Cable WV-1, Overmold 94V-0

Mini DP plug to VGA receptacle

Part Number: 92987-3411-0.5
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Mini DisplayPort Plug to VGA Receptacle(D-sub 15P)
Series: Display port
Cable Length：0.5 meters
Wire Size：34AWG, TINNED COPPER,OD:4.5MM
Lock to Mating Part: With Latch
Plating：Au(15u" min) over Ni(50u" min)
Color: Black
Environmental Compliance: ROHS
Flammability: Cable WV-1, Overmold 94V-0

Applications

DP Signal Enhancer

DP to VGA Signal Transducer

Others



Features and Benefits

Transfer Dual Mode DP(Dual Mode DisplayPort) signal to VGA signal

Dual Mode DP(Dual Mode DisplayPort) signal enhancer

Compliance with DP 1.1 Sepecification



Mechanical Performance

 Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Requirement:

Mating Force: 44.1 N maximum.

Unmating Force(no latches): 9.8N(1.0kg) min,39.2N(4.0kg) max



Product Environmental Compliance

RoHS 2.0: RoHS 2.0 Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
