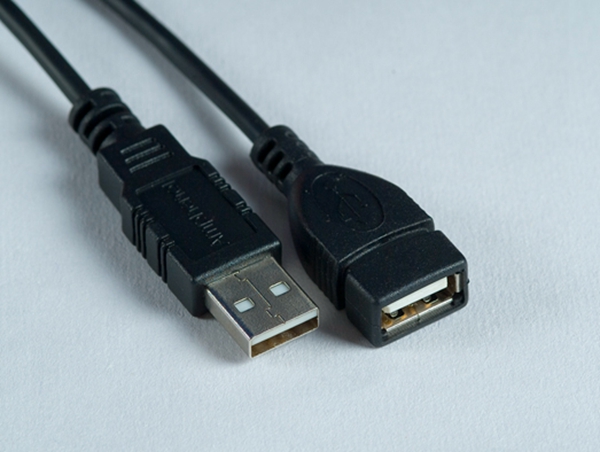

Applications

   Extention Connection For

1. Monitor

2. CD-ROM

3. Audio Input/Output System

4. Modem

5. Keyboard

6. Mouse

7. Scanner

8. Printer

Features and Benefits

1.USB 2.0 transfer rate up to the maximum 480Mbps

2. Downward compatible with USB1.0/1.1 devices

3. Provide with both data transmission and charging

4. Provide blind mate

Mechanical Performance

         1. Mating Force and Unmating Force

             Condition: EIA 364-13, at a max rate of 12.5mm per minute.

             Requirement:

               Mating Force: 35N max.

               Unmating Force:  10N min initial.

         2. Durability

             Condition: EIA 364-09, at a max rate of 500 cycles per hour

         Requirement:

         1500 cycles mating, no physical damage

Electrical Performance

         1. Contact Resistance

             30mohm max,+10mohm max change for post test

         2. Dielectric Withstanding Voltage 300VAC/min.

             No flashover, no spark over, no excess leakage and no breakdown.

         3. Insulation Resistance

             20M ohm min

         4. Differential  Impedance

       90 ohm +/- 15%

  5. Common Mode

       30 ohm +/-30%

 6. Cable Propagation Delay

       26ns Max, Adaptor: 1ns

   7. Cable Propagation Skew

       100ps for intra-pair Max

 8. Signal Attenuation

    USB Spec 2.0 section 7.1.17

5.8dB max (at 400MHz)

3.2dB max (at 200MHz)

1.9dB max (at 96MHz)

Product Environmental Compliance

RoHS2.0:  RoHS 2.0 Compliant

China RoHS: Yes

         REACH SVHC: Yes

         Low-Halogen Status: Not Reviewed
