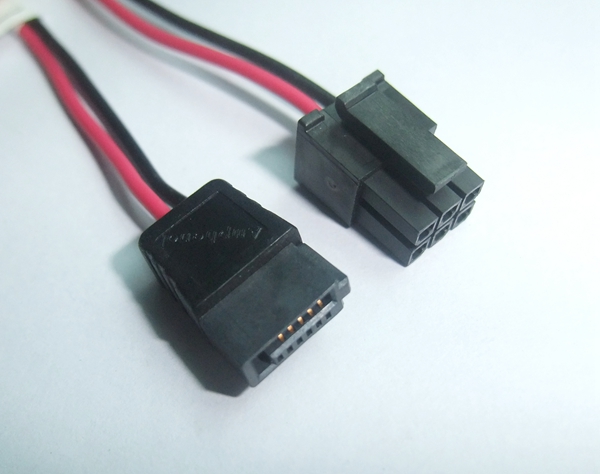

Applications Power Supply 1. Independent Disks 2. CD driver 3. Workstations 4. Servers 5. Storage rack Features and Benefits 1. Meet SATA 3.0 specification Mechanical Performance 1. Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 12.5mm/minute. Mating Force: 45 N max Unmating Force: 10 N min for cycles 1 through 5. 8N min after 50 mating/unmating (at rate of 200cycles per hour) cycles. 2. Durability: Condition: EIA 364-09. Mated and Unmated connector for 50cycles at a rate of 200 cycles per hour. No physical damage and shall meet requirements of subsequent test. Electrical Performance 1. Contact Resistance Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV maximum. Open circuit at 100mA maximum. 30 mohm max, initial per contact mated pair. 15 mohm max, after stress per contact mated pair. 2. Dielectric Withstanding Voltage Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies. The dielectric shall withstand 500 VAC for 1 minute at sea level. No flashover, no spark over, no excess leakage and no breakdown. 3. Insulation Resistance Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies. The IR shall be 1000 Mohm min. Product Environmental Compliance RoHS2.0: RoHS 2.0 Compliant China RoHS: Yes REACH SVHC: Yes Low-Halogen Status: Not Reviewed Packing Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
