Features and Benefits

1.USB2.0 transfer rate up to the maximum 480Mbps

2. Downward compatible with USB1.0/1.1 devices

3. Provide with both data transmission and charging

4. Provide blind mate

Mechanical Performance

1. Mating Force and Unmating Force

Condition: EIA 364-13, at a max rate of 12.5mm per minute.

Requirement:

Mating Force: 35N max.

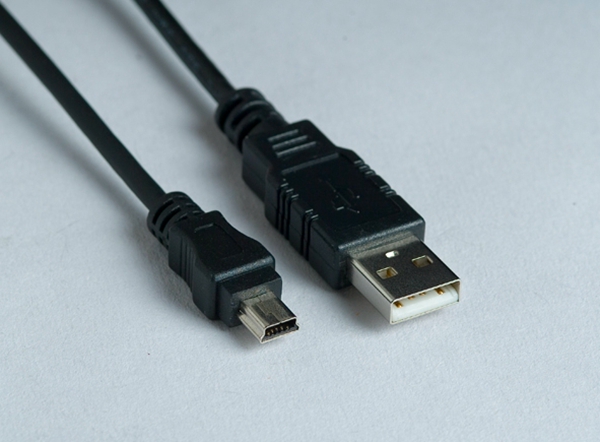

Unmating Force: USB-A plug 10N min initial, Min B plug 3N min.

2. Durability

    Condition: EIA 364-09, at a max rate of 500 cycles per hour

    Requirement:

   USB A plug,1500 cycles. USB Mini B plug, 5000 cycles. No physical damage

Electrical Performance

1. Contact Resistance

30mohm max,10mohm max change for post test

2. Dielectric Withstanding Voltage 300VAC/min.

No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance

20M ohm min

4. Differential  Impedance

90 ohm +/- 15%

5. Common Mode

30 ohm +/-30%

6. Cable Propagation Delay

26ns Max

7. Cable Propagation Skew

100ps for intra-pair Max

8. Signal Attenuation

USB Spec 2.0 section 7.1.17

5.8dB max (at 400MHz)

3.2dB max (at 200MHz)

1.9dB max (at 96MHz)

Product Environmental Compliance

RoHS2.0: RoHS 2.0 Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed

Packing

Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
