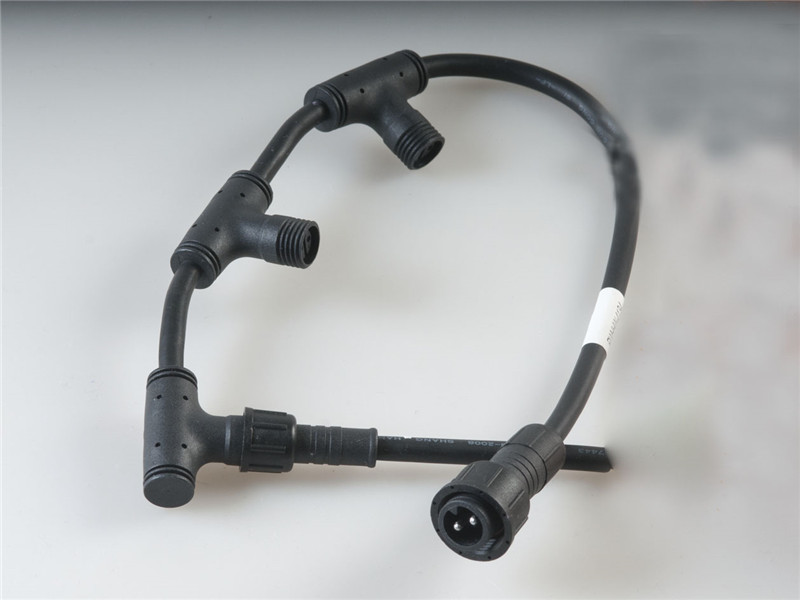

M14 Male to Female
Product Description：Waterproof Sealiable®R-M14 Cable Assembly
Series：Waterproof Cable Assembly
Cable Length：Customization
Wire Size：60245 IEC57(YZW) Or H05RN-F, 2*1.0 square mm,2*1.5 square mm,2*0.75 square mm;
Lock to Mating Part： By Screw
Plating：Tin(75u'' min) over Ni(50u'' min)
Color: Black
Environmental Compliance：RoHS
Flammability：Thermoplastic, UL94V-0

M14 Male to Female

Product Description：Waterproof Sealiable®R-M14 Cable Assembly
Series：Waterproof Cable Assembly
Cable Length：Customization
Wire Size：60245 IEC57(YZW) Or H05RN-F, 2*1.0 square mm,2*1.5 square mm,2*0.75 square mm;
Lock to Mating Part： By Screw
Plating：Tin(75u'' min) over Ni(50u'' min)
Color: Black
Environmental Compliance：RoHS
Flammability：Thermoplastic, UL94V-0

Applications

1. LED lighting

2. Intelligent water meter

3. Vehicle

4. Power generation

5. Servo motor


Features and Benefits

1. Screw nut locking ensure reliable connection

2. Withstand outdoor harsh operating environment

3. Protection grade up to IP67 of IEC60529

4. Male, female and T type connector are available

Mechanical Performance

1. Ambient temperature range: -40 oC ~ +105oC

2. Mated cycle :Min1000 times

3. Terminal retention force: Min10KG



Electrical Performance

1. Current Rating : 1~10A

2. Voltage Rating: 50V~125V

3 .Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown

4. Insulation Resistance: 5 MOhm minimum.

5. Contact resistance:Max 10mOhm



Material Property

1. Male terminal: Cu Alloy

2. Female terminal: Cu Alloy

3. Insulator: Thermoplastic

4. Waterproof seal: Silicon Rubber



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed


Packing

       Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
