PCIe Extender

Part Number: RPC164-0001
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: PCI Express 164pin Edge Card to Receptacle Cable Assembly
Series: PCI Express
Cable Length: 1.0 meters
Signal Wire Size: 30AWG, Tinned Copper
Power Wire Size:22AWG
Plating: Au 15u" min over Ni 100u'' min
Color: Natural/Black/Blue
Environmental Compliance: RoHS
Flammability: Raw Cable Horizontal flame, PCB UL94V-0, thermoplastic resin UL94V-0

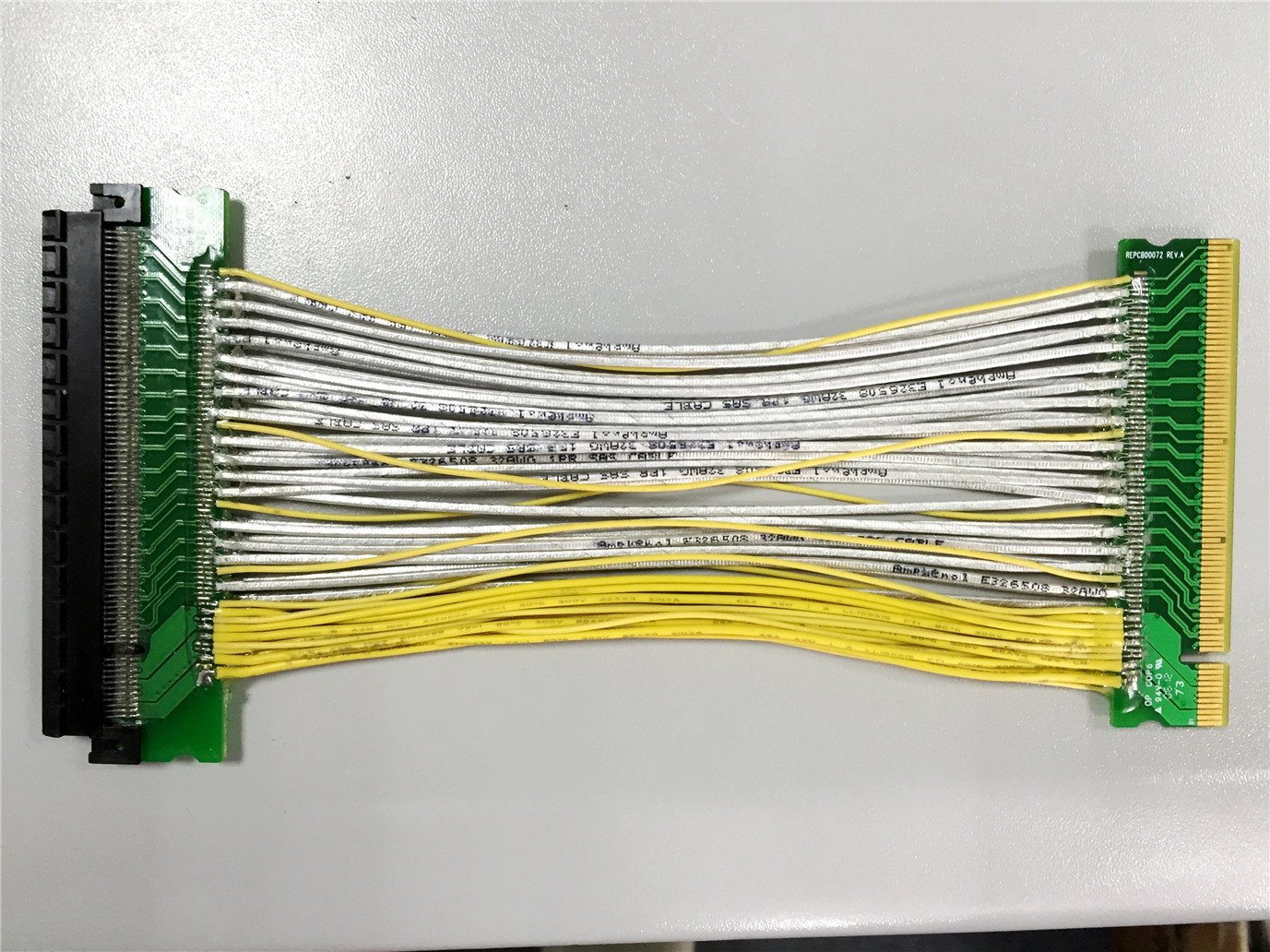

PCIe Extender

Part Number: RPC164-0001
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: PCI Express 164pin Edge Card to Receptacle Cable Assembly
Series: PCI Express
Cable Length: 1.0 meters
Signal Wire Size: 30AWG, Tinned Copper
Power Wire Size:22AWG
Plating: Au 15u" min over Ni 100u'' min
Color: Natural/Black/Blue
Environmental Compliance: RoHS
Flammability: Raw Cable Horizontal flame, PCB UL94V-0, thermoplastic resin UL94V-0

Applications

    1. PCIe SSD

2. Data Storage

3.Servers

4.Storage rack


Features and Benefits

1. Transmission rate 8 GT/s.

2. Meet PCIE3.0 specification.



Mechanical Performance

Mating Force and Un-mating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 59 N maximum.

Un-mating Force: 12 N minimum.



Electrical Performance

1.Contact Resistance

30mohm max for signal contacts (initial).

2.Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

3.Insulation Resistance

1000 Mega ohms minimum.



Signal Integrity

1. Mated Connector Impedance: 85 ohm±15%

2. Cable Absolute Impedance: 85 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms


Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

       Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
