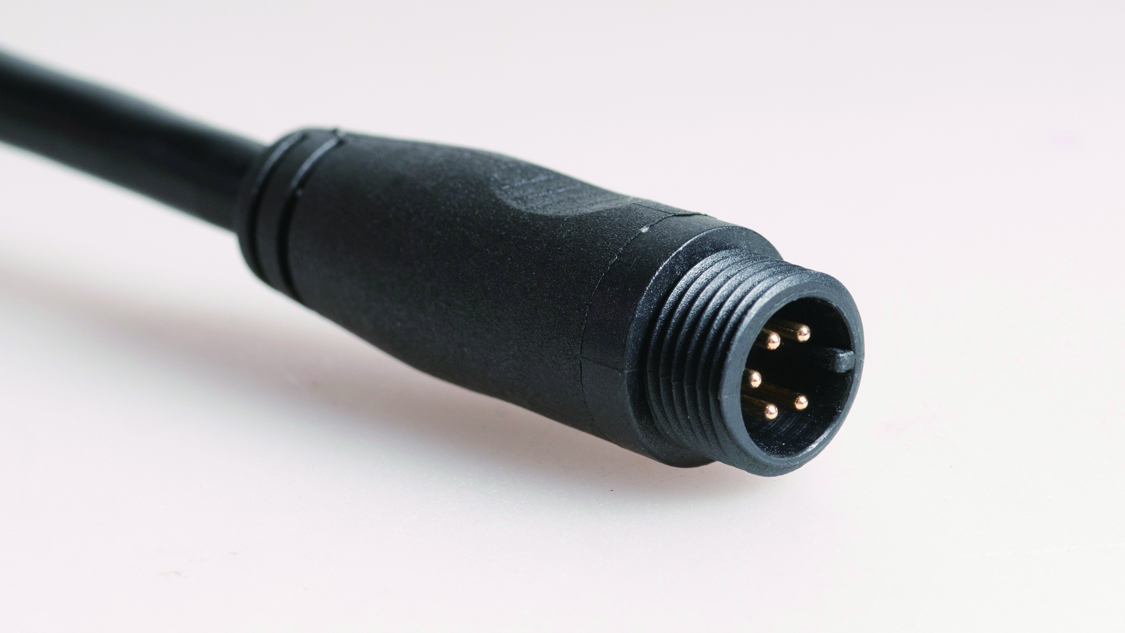

M12 5Pos Mini Male to open
Part Number: RWHHW-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description：Waterproof Sealiable®-R M12 5Pos Mini Male to open Cable Assembly
Series：Waterproof Cable Assembly
Cable Length：300mm
Cable Spec: 23AWG*2P, Compliant to UL,
Lock to Mating Part: By Screw
Plating: Gold Flash over Ni
Color: Black
Environmental Compliance: RoHS
Flammability: Thermoplastic UL94 V-0, Raw Cable VW-1

M12 5Pos Mini Male to open

Part Number: RWHHW-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description：Waterproof Sealiable®-R M12 5Pos Mini Male to open Cable Assembly
Series：Waterproof Cable Assembly
Cable Length：300mm
Cable Spec: 23AWG*2P, Compliant to UL,
Lock to Mating Part: By Screw
Plating: Gold Flash over Ni
Color: Black
Environmental Compliance: RoHS
Flammability: Thermoplastic UL94 V-0, Raw Cable VW-1

Applications

1.    LED wall-wash

2.    Automation industry

3.    Instrument

4.    LED driver



Features and Benefits

1. Meets IP67 protection degree of IEC60945



Mechanical Performance

1. Ambient temperature range: -40 oC ~ +75oC

2. Mated cycle :Min.500 times

3. Terminal retention force: Min. 60g/100g



Electrical Performance

1. Current Rating : 5A

2. Voltage Rating: 250V

3 .Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown

4. Insulation Resistance: 100 MOhm minimum.

5. Contact resistance: Max 5mOhm



Material Property

1. Male terminal: Phosphor copper

2. Insulator: Thermoplastic


Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
