Applications

1.      iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c and iPhone 5

2.      iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad Air 2, iPad Air, iPad (4th generation),

3.      iPad mini 4, iPad mini 3, iPad mini 2, iPad min

4.      iPod touch (6th generation), touch (5th generation),

5.      iPod nano (7th generation)

6.      Apple TV (4th generation)

7.      Host computers, external monitors, cameras, USB battery chargers and other peripherals

Features and Benefits

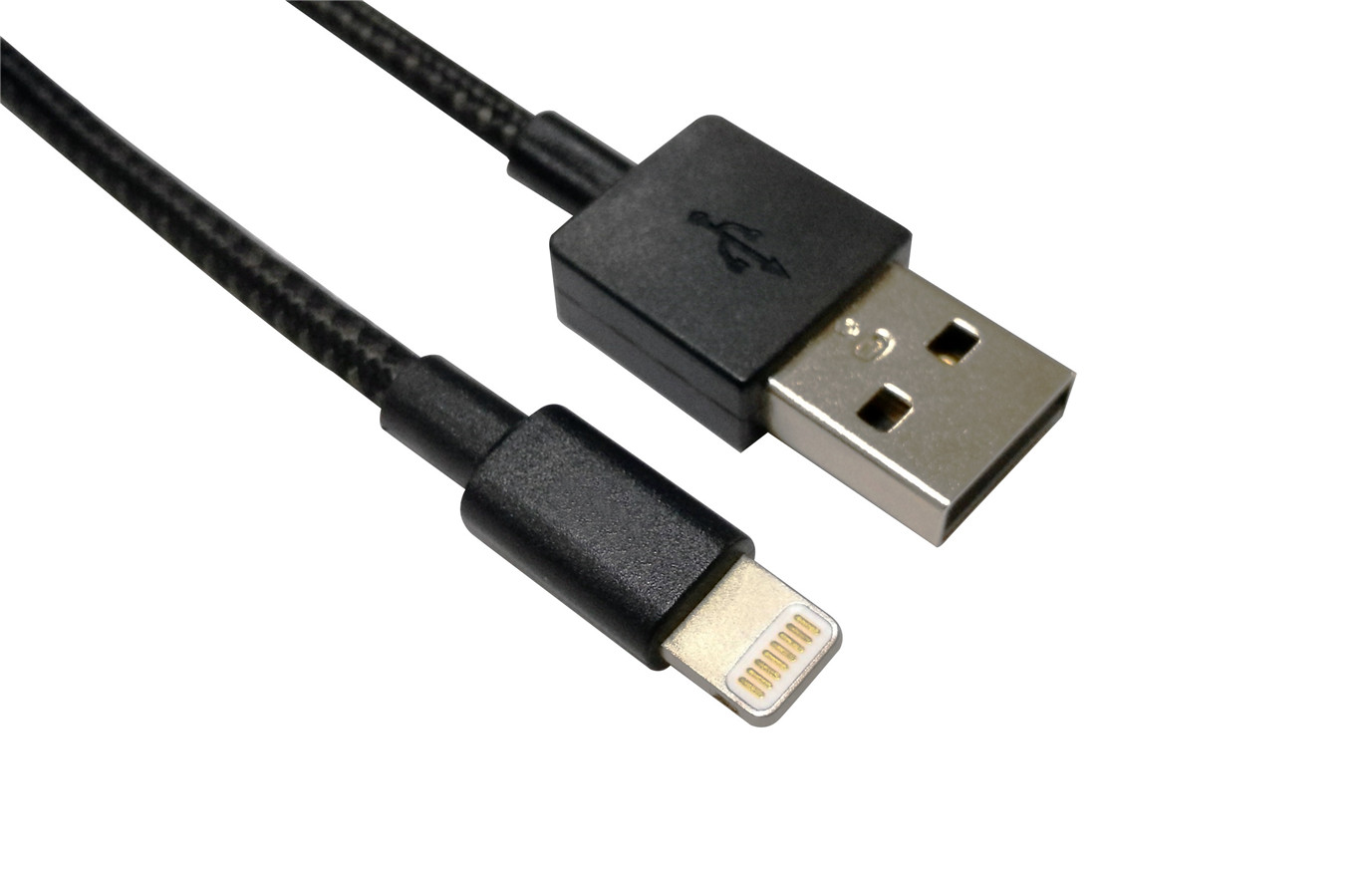

1.      Lightning connector own compact size to replaces Apple 30pin connector,it is smaller than Apple 30pin, Micro-USB and Type-C connector

2.      Lightning connector can engage with Apple devices in either orientation

3.      Robust connector provides protection from outside damage and liquid ingress

4.      Easy and reliable to mate and un-mate into receptacle with springs

5.      Support 5V 2A power supply and USB2.0 data transmission

6.      Overvoltage protection

7.      Low quiescent current consumption

8.      Excellent bending performance is optional: 10000 cycles, +/-70 degree

9.      Excellent EMI and ESD performance

10.    Stable and controllable process assure good quality

11.    Achieved Apple MFi license to meet Apple Accessory Interface Specification R25

Mechanical Performance

1.      USB-A and lightning connector meet durability spec in USB2.0 spec.: 1500 cycles and 10000 cycles

2.      Cable pull out test for USB end: 40N for 1 minute

3.      Cable shield bend test for lightning end: shield is intact aft applying 100N

4.      Cable bending test: 50 cycles, 360 degree per cycle with 453g load

Electrical Performance

1.      SI performance fully compliant to USB2.0 Spec

2.      Over voltage: from 5V to 9V

3.      Current limit: <8mA at 3.5V SMU load, <15mA at a short circuit

4.      Quiescent Current Consumption test: 17mA at –1V, 1mA at 5V

5.      DC resistances:

    Round‐trip VBUS with shield shorted to GND at each end: 200 mΩ max (RGND||SHIELD)

    VBUS conductor alone: 160 mΩ max (RVBUS)

    Round conductor alone: 140 mΩ (RGND)

Environmental Performance

1.      Thermal shock: -55 Celsius to +85 Celsius, totally 10 cycles

2.      High Temp.: +85 Celsius for 500 hours

3.      Mix flowing gas test: EIA‐364‐65. Class IIA, contact resistance 30 mohm max initially, 10 mohm max change after post test

4.      Mechanical Shock: EIA 364‐27, Condition H, 18 shocks, no discontinuities greater than 1μs

5.      Random Vibration: EIA 364‐28. Condition V. Method A, no discontinuities greater than 1μs

Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 25
