Applications

1.     360 Camera system

2.     Digital Audio Broadcasting(DAB)

3.     Satellite Digital Audio Radio System(SDARS)

4.     Global Positioning System(GPS Navigation)

5.     Bluetooth

6.     Telematics

7.     Mobile television

Features and Benefits

1.      IP67 water proof

2.      Reliable design and performance

3.      Operation Temp. -40 ˚C to +105 ˚C

4.      Excellent EMC shielding

Mechanical Performance

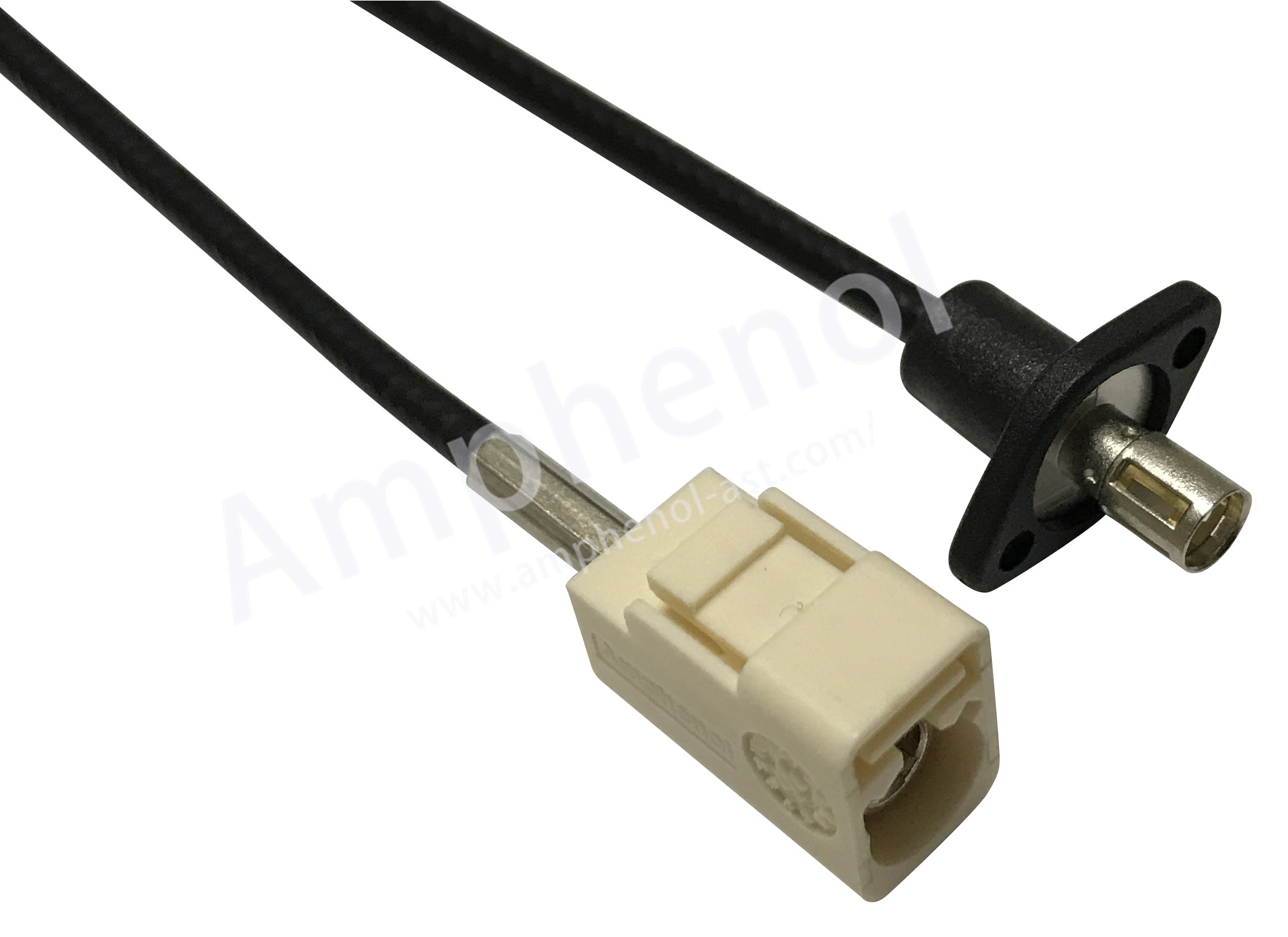

1.     Mating Force: 25N maximum for B code receptacle, 2~10N for receptacle with mounting holes

2.     Unmating Force: 110N maximum for B code receptacle, 2~10N for receptacle with mounting holes

3.     Durability: 100 cycles min.

Electrical Performance

1.     Contact resistance: 40mohm maximum change after stress test

2.     Dielectric Withstanding Voltage: 800 VDC minimum

3.     Insulation Resistance: 10 MΩ minimum

Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
