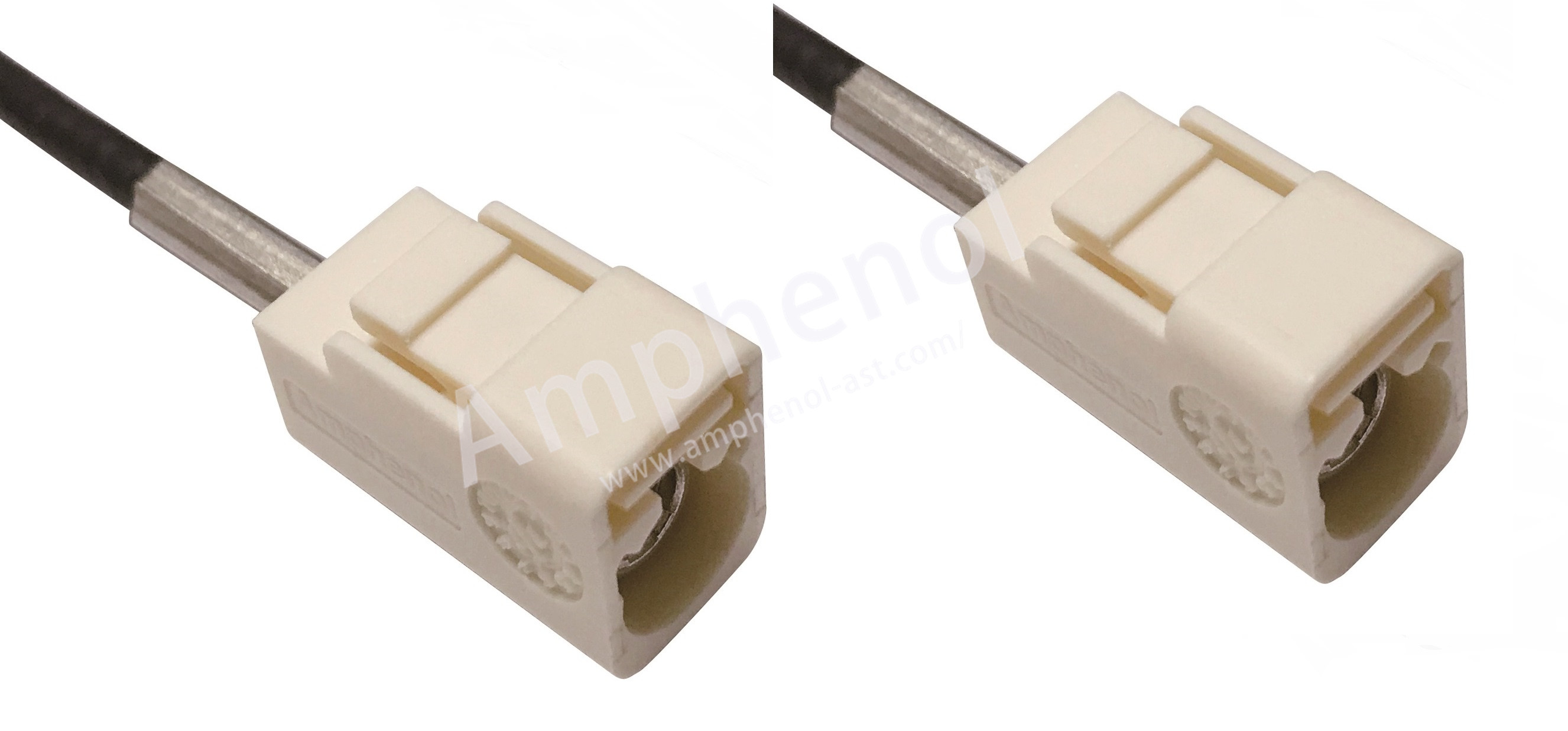

FAKRA Receptacle to Receptacle

Part Number: RATFK-0070
Product Description: FAKRA Receptacle to Receptacle
Series: FAKRA
Cable Length: 10 meters
Signal Wire Size: 24AWG
Lock to mating part: With latch
Plating: connector Au.
Color: Cream white for connector
Environmental Compliance: RoHS
Flammability: thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

FAKRA Receptacle to Receptacle

Part Number: RATFK-0070
Product Description: FAKRA Receptacle to Receptacle
Series: FAKRA
Cable Length: 10 meters
Signal Wire Size: 24AWG
Lock to mating part: With latch
Plating: connector Au.
Color: Cream white for connector
Environmental Compliance: RoHS
Flammability: thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Applications

1.     360 Camera system

2.     Digital Audio Broadcasting(DAB)

3.     Satellite Digital Audio Radio System(SDARS)

4.     Global Positioning System(GPS Navigation)

5.     Bluetooth

6.     Telematics

7.     Mobile television



Features and Benefits



1.      14 key codes A-I, K-N and Z  with different color for different application or can be defined according to customer requirements

2.      Right angle and vertical board connector for different applications

3.      Reliable design and performance

4.      Operation Temp. -40 ˚C to +105 ˚C

5.      Excellent EMC shielding



Mechanical Performance

1.     Mating Force: 25N maximum

2.     Unmating Force: 110N maximum

3.     Durability: 100 cycles min.



Electrical Performance

1.     Contact resistance: 40mohm maximum change after stress test

2.     Dielectric Withstanding Voltage: 800 VDC minimum

3.     Insulation Resistance: 10 MΩ minimum



Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
