Applications
1. Servers/Storage Devices
2. High Performance Computing
(HPC)
3. Data center & Networking
Equipment
4. Wireless Base Stations and
Radios
Features and Benefits
1.Support
cable to board application
2.Multiple
channels are optional: 1C(56pos.), 2C(84pos.), 4C (140pos.) and 4C+(168pos.)
3.Small
size design: pitch 0.6mm connector,

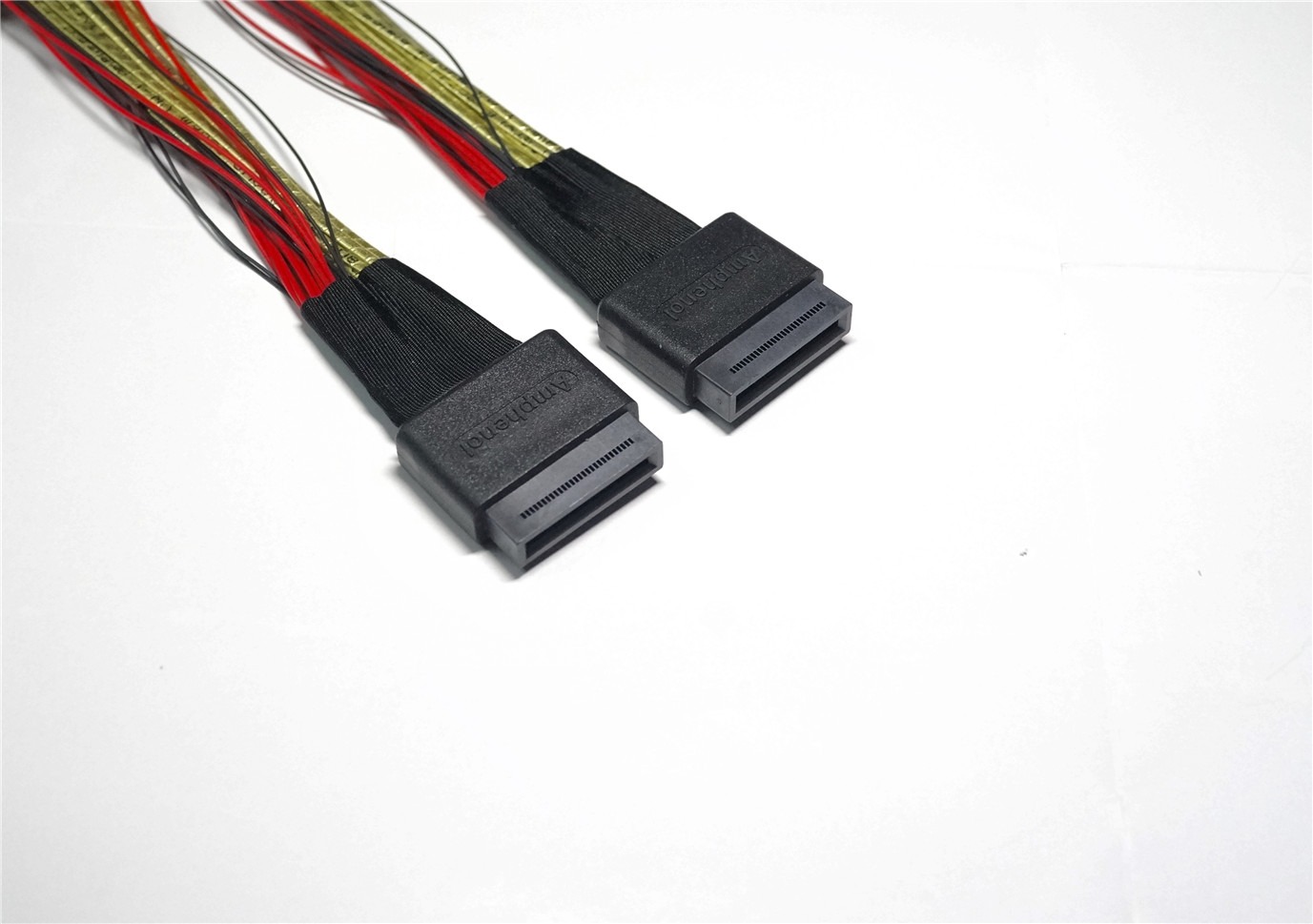

4.Straight
cable plug is available, right angle, side exit and other cable plug can be
customized
5.Excellent
SI performance: signal rates up to 56 GT/s PAM4 and 112 GT/s PAM4
6.Support
power and high speed signal transmission together
7.Supports
85 ohm impedance applications
8.30-34AWG
are available for both discrete and ribbon cable
9.RoHS
compliant. Halogen free is available on request
Mechanical Performance
1. Mating Force: 31N maximum
2. Un-mating Force: 6N minimum
3. Rated durability cycles: 25 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per signal contact, 1.1A per power contact
3. Contact resistance: 30mohm max. initial, 15mohm maximum
change after stress test
4. Dielectric Withstanding Voltage: 300 VDC minimum for 100
ms
5. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. Mated
Connector Impedance: 85 ohm @23ps
RT
2. Return loss: meet 56G PAM4
3. FEXT: meet 56G PAM4
4. NEXT: meet 56G PAM4
5. Insertion loss: meet 56G PAM4
Product Environmental Compliance
RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s
Site Operating Procedure #SOP-708 REV 2
