Applications
1.     Data center & Networking Equipment
2.     Servers/Storage Devices
3.     High Performance Computing (HPC)
4.     Switches/Routers
5.     Wireless Base Stations and Radios

Features and Benefits

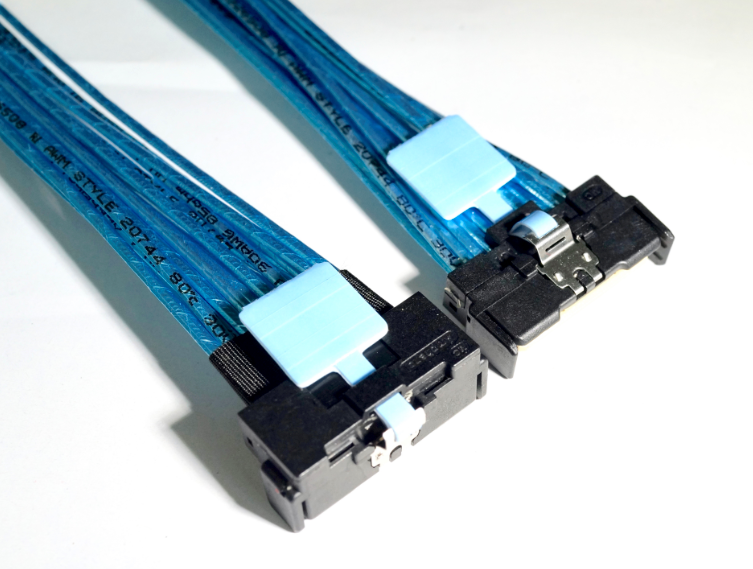

1.     Pitch 0.6mm connector design, plug with pull tab
2.     1.57mm PCB card thickness compatible with PCIe riser card
3.     Straight, right angle, side exit and customization cable plug are optional
4.     Pull tab is optional
5.     Supports 85 ohm impedance applications
6.     Supports signaling rates up to PCIe Gen5 and PCIe Gen6

7.     30-34AWG cable

8.     Adopted by SFF(SFF-TA-1016)


Mechanical Performance
1.      Mating Force: 55.5N maximum
2.      Unmating Force: 49N maximum
3.      Rated durability cycles: 250 cycles minimum

Electrical Performance
1.     Voltage: 30VAC per contact
2.     Current: 0.5A per contact
3.     Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test
4.     Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
5.     Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity
 PCIe Gen5 and PCIe Gen6

Product Environmental Compliance
RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing
 Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
