1. Servers

2. Data Storage

3. Workstation

Features and Benefits

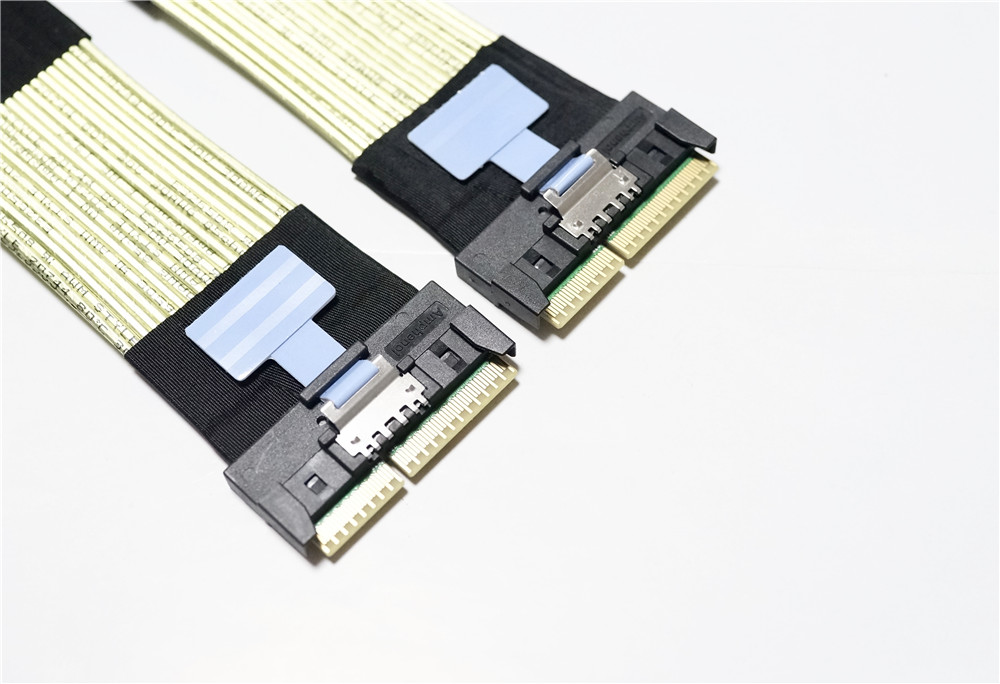

1. Smaller size connector and cable saves device space

2. Provide 8 channels signal transmission as per industry standard

2. Data speed: support UPI 11.2GT/s, SAS4.0 24Gbps, OpenCAPI 25Gbps and PCIe 4.0 16Gbps per lane

2. Meet SAS4.0 and SlimSAS SFF-8654

Mechanical Performance

1. Mating Force: 55.5N maximum

2. Unmating Force: 49N maximum

3. Rated durability cycles: 250 cycles minimum

Electrical Performance

1. Voltage: 30VDC per contact

SlimSAS 8i plug: 80mohm max. initial, 20mohm maximum after stress test.

2. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

3. Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity

1. Mated Connector Impedance: 100+/-10% ohm

2. Common Mode Impedance: meet SAS4.0 specification

3. Insertion loss: meet SAS4.0 specification,

4. Maximum Crosstalk: meet SAS4.0 specification

Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
