Applications

1. Data center & Networking Equipment

2. Servers/Storage Devices

3. High Performance Computing (HPC)

4. Switches/Routers

5. Wireless Base Stations and Radios

Features and Benefits

1. Pitch 0.6mm 95 ohm impedance connector design
2. 1.57mm PCB card thickness compatible with PCIe riser card

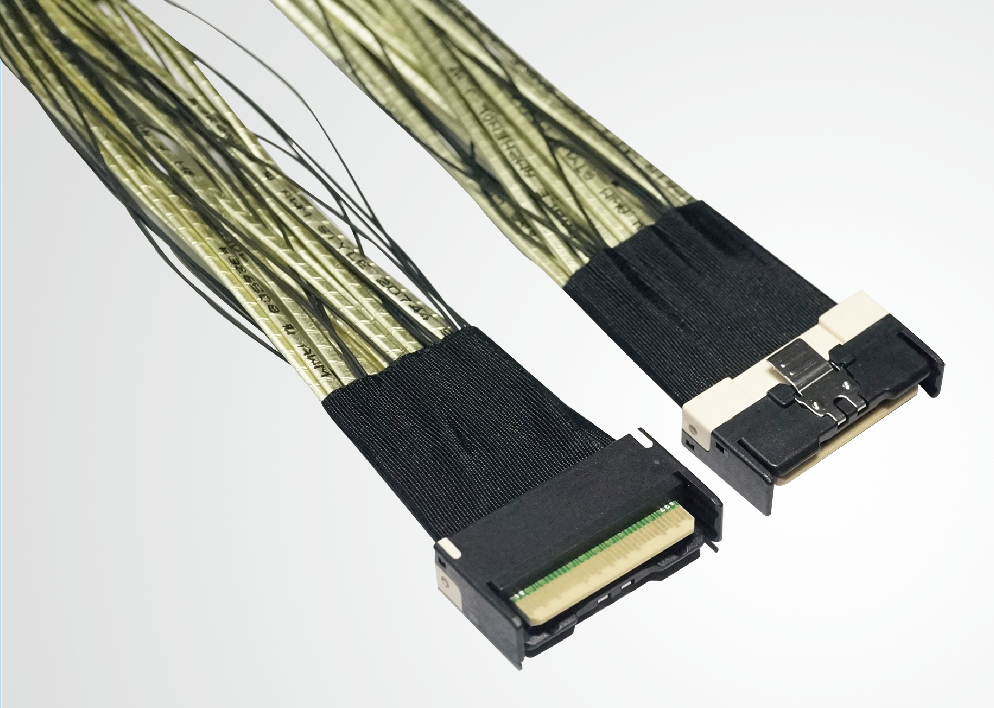

3. Straight, right angle and customization cable plug are optional
4. 4X(38pin), 8X(50pin), 16X(100pin),16X/20X(124pin)

5. Support signaling rates up to 56G PAM4 and 112G PAM4

6. Support chip to external IO application
7. 30-34AWG cable

Mechanical Performance

1. Mating Force: 55.5N maximum

2. Unmating Force: 49N maximum

3. Rated durability cycles: 250 cycles minimum

Electrical Performance

1. Voltage: 30VAC per contact

2. Current: 0.5A per contact

3. Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5. Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity

Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed

Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
