Home>SFF-8639 (PCIe Gen5)

SFF-8638

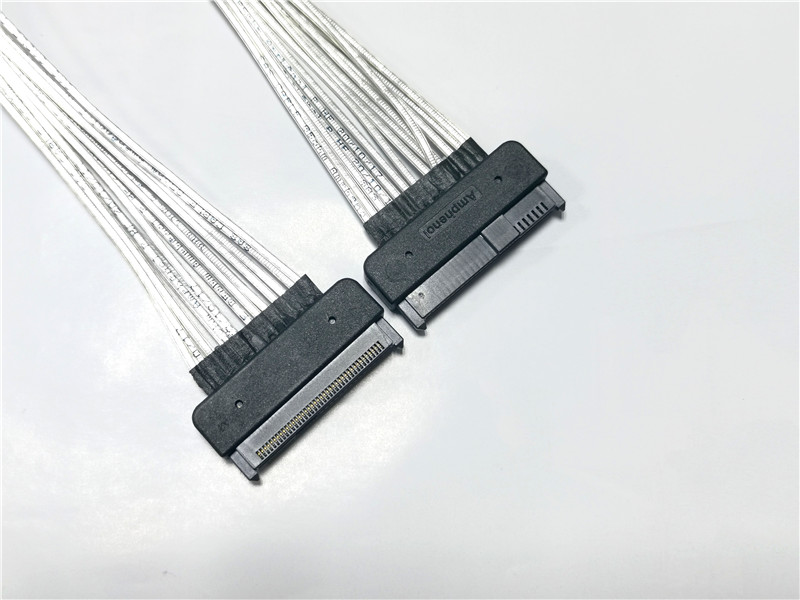

Product Description: SFF-8639 68P Straight to SFF-8639 68P Straight
Series: SFF-8639
Signal Wire Size: 34-30AWG
Power Wire Size:22AWG
Plating: Au 15u' min over Ni 100u' or others
Color: Over mold Black
Environmental Compliance: RoHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

SFF-8638

Product Description: SFF-8639 68P Straight to SFF-8639 68P Straight
Series: SFF-8639
Signal Wire Size: 34-30AWG
Power Wire Size:22AWG
Plating: Au 15u' min over Ni 100u' or others
Color: Over mold Black
Environmental Compliance: RoHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

Applications

1.Data Storage

2.RAID (Redundant Array of Independent Disks)

3.Workstations

4.Rack-mount server

5.Servers

6.Storage rack

7.SolidStateDisk


Features and Benefits

1.Transmission rate 32GT/s PCIe Gen5

2. Meet SAS4.0 specification


Mechanical Performance

1. Mating Force and Unmating Force

2. Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute

3. Mating Force: 59 N maximum

4. Un-mating Force: 12 N minimum


Electrical Performance

1. Contact Resistance

2. 30mohm max. initial, 15mohm maximum after stress test

3. Dielectric Withstanding Voltage

4. 500 VAC for 1 minute no breakdown

5. Insulation Resistance

6. 1000 Mega ohms minimum



Signal Integrity

1. PCIe Gen5

2. Can be upgrade to PCIe Gen6



Product Environmental Compliance

1. RoHS2.0: Compliant

2. ChinaRoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
