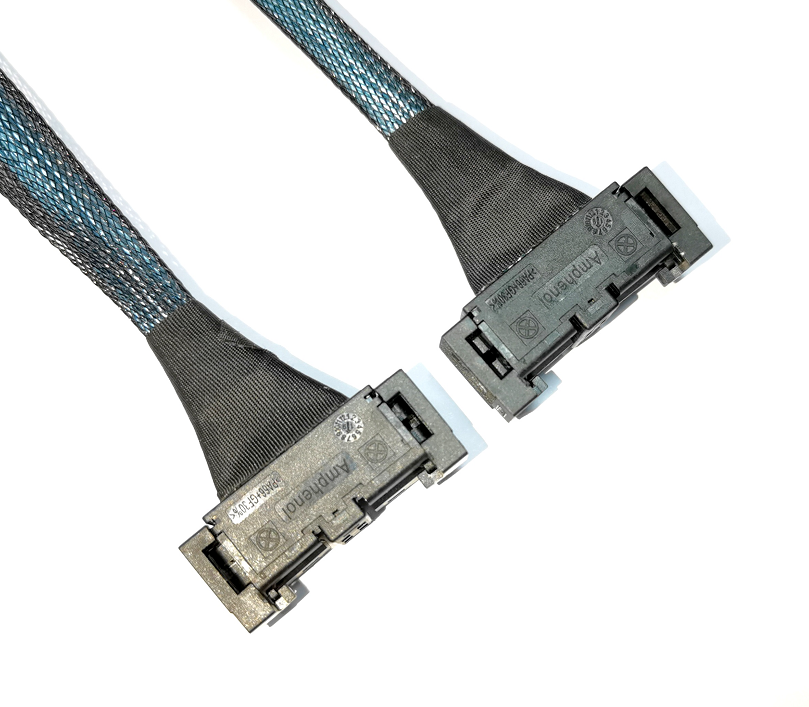

CooLink 74pos RA

Product Description: CooLink 8x Right Angle Cable Assembly
Cable Assembly Series: CooLink
Signal Wire Size: 30AWG~34AWG
Lock to mating part: With double locker
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, HB for connector, vw-1 for raw cable

CooLink 74pos RA

Product Description: CooLink 8x Right Angle Cable Assembly
Cable Assembly Series: CooLink
Signal Wire Size: 30AWG~34AWG
Lock to mating part: With double locker
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, HB for connector, vw-1 for raw cable

Application

1. Autonomous driving super computing GPU/CPU system

2.  Advanced AVS

3. Ethernet switch system


Features and benefits

 1. Automotive grade connector design (SAE USCAR2)
 2. CPA design and double locker
 3. High environmental performance Nylon material for connector housing
 4. High density with multiple high speed channel
 5. Good SI performance under -40℃ and +105℃

 6.  Mechanical/Environmental cable performance (SAE USCAR2)
 7.  Vibration and mechanical shock up to V2 level
 8.  Operation temperature can meet -40℃ to +105℃
 9.  Retention force >=110N
 10. High temperature 105℃ for 1008hours,
 11.  Thermal shock for 170hours  and  HTHH for 560hours
 12. High scalability: 16X (124pin), 8X(74pin&50pin) connector interface
 13. Unshielded cable for CPU/GPU connectivity, shielding cable for GPU/CPU to Switch or controller


Signal Integrity

1. PCIe Gen4


Product Environmental Compliance
 1. RoHS2.0: Compliant
 2. China RoHS: Yes
 3. REACH SVHC: Yes
 4. Low-Halogen Status: Not Reviewed

Packing
  Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
