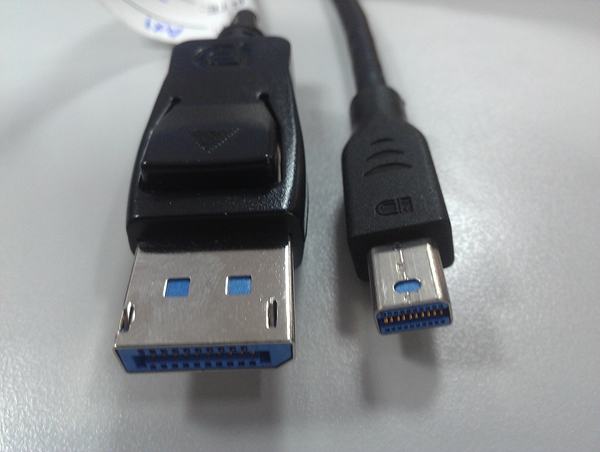

DisplayPort to Mini DisplayPort

Part Number: 92918-3411-1.8
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description:DisplayPort Plug With Latch to Mini DisplayPort plug
Series: DisplayPort
Cable Length:1.8 meters
Wire Size:34AWG, Tinned Copper,OD:4.5MM
Lock to Mating Part: With Latch / without latch
Plating: Au(15u' min) over Ni(50u' min)
Color: Black
Environmental Compliance:ROHS
Flammability: Cable VW-1, Overmold 94V-0

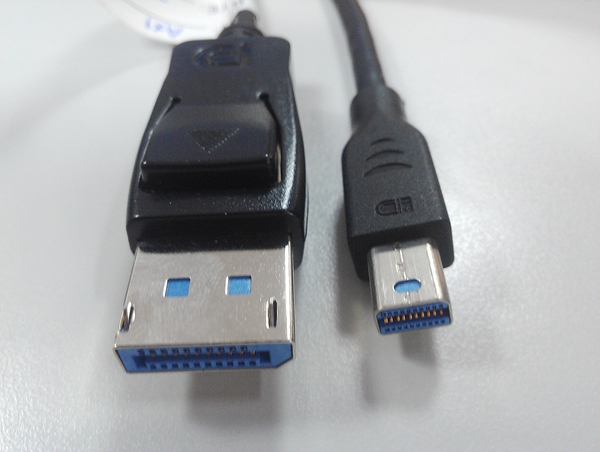

DisplayPort to Mini DisplayPort

Part Number: 92918-3411-1.8
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description:DisplayPort Plug With Latch to Mini DisplayPort plug
Series: DisplayPort
Cable Length:1.8 meters
Wire Size:34AWG, Tinned Copper,OD:4.5MM
Lock to Mating Part: With Latch / without latch
Plating: Au(15u' min) over Ni(50u' min)
Color: Black
Environmental Compliance:ROHS
Flammability: Cable VW-1, Overmold 94V-0

Applications

Desktop and notebook

Monitors

TVs

Projector

Set-Top Boxes

Audio/Video Receivers

DVD Players/Recorders



Features and Benefits

1. Higher performance than dual link DVI, total data rate 10.8Gbps

2. Available audio and video for multi-function monitors

3. Embedded clock

4. Connector enables support for DVI and HDMI via simple adapter

5. Enables new “Direct Drive” monitor category

6. Enable greater integration on both sides of the interface to reduce the cost of digital displays

7. Provide scalable performance in terms of resolution, color depth, and refresh rate over fewer wires to support emerging display needs, such as scalable lanes (1-4) for direct drive LCD panel integration

8. Auxiliary channel(1Mbps) enables new user featuresfor example as transfer channel of voice chatter, VoIP, game control and camera video

9. Available content protection supports high definition movie viewing

10. Enable a common interface approach across both internal and external display connections

11. Enable an extensible, open industry standard without IP (intellectual property) barriers

12. Offer max 3m cable at high bit rate 2.7GHz and max 15m cable at low bit rate 1.62GHz



Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Requirement:

Mating Force: 44.1 N maximum.

Unmating Force(no latches): 9.8N(1.0kg) min,39.2N(4.0kg) max



Electrical Performance

1. Contact Current Rating

0.5Amperes maximum per pin when mated.

2. Voltage Rating

40 Volts AC (RMS.) continuous maximum, on any signal pin with respect to the shield.

3. Contact Resistance

EIA-364-23

Contact: change from initial value=30 mΩ max.

Shell: change from initial value=50 mΩ max

4. Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

5. Insulation Resistance

Unmated connectors 100 Mohm minimum.

Mated connectors 10 Mohm minimum.
