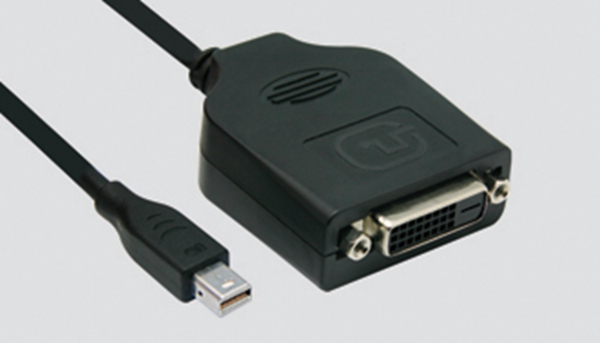

Mini DP Plug to DVI-D Receptacle
Part Number: 92983-3411-0.5
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Mini DisplayPort Plug to DVI-D(24+1)P Receptacle
Series: DisplayPort
Cable Length: 0.5 meters
Wire Size: 34AWG, Tinned Copper,OD 4.5MM
Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 50u' min
Color: Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-0

Mini DP Plug to DVI-D Receptacle

Part Number: 92983-3411-0.5
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Mini DisplayPort Plug to DVI-D(24+1)P Receptacle
Series: DisplayPort
Cable Length: 0.5 meters
Wire Size: 34AWG, Tinned Copper,OD 4.5MM
Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 50u' min
Color: Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-0

Applications

DP Signal Enhancer

DP to DVI Signal Transducer



Features and Benefits

Transfer Dual Mode DP(Dual Mode DisplayPort) signal to DVI(Digital Visual Interface)

Dual Mode DP(Dual Mode DisplayPort) signal enhancer

Compliance with DP Specification Rev 1.2



Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 44.1 N maximum.

Unmating Force(no latches): 9.8N(1.0kg) min,39.2N(4.0kg) max



Product Environmental Compliance

RoHS 2.0: RoHS 2.0 Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
