Applications
1. Servers
2. Data Storage
3. Workstation
Features and Benefits
1. Smaller size connector and cable saves device space
2. Provide four channels signal transmission as per industry standard
2. Data speed: 12Gbps per channel
2. Meet SATA3.0 and Ultraport SlimSAS SFF-8654 specification
Mechanical Performance

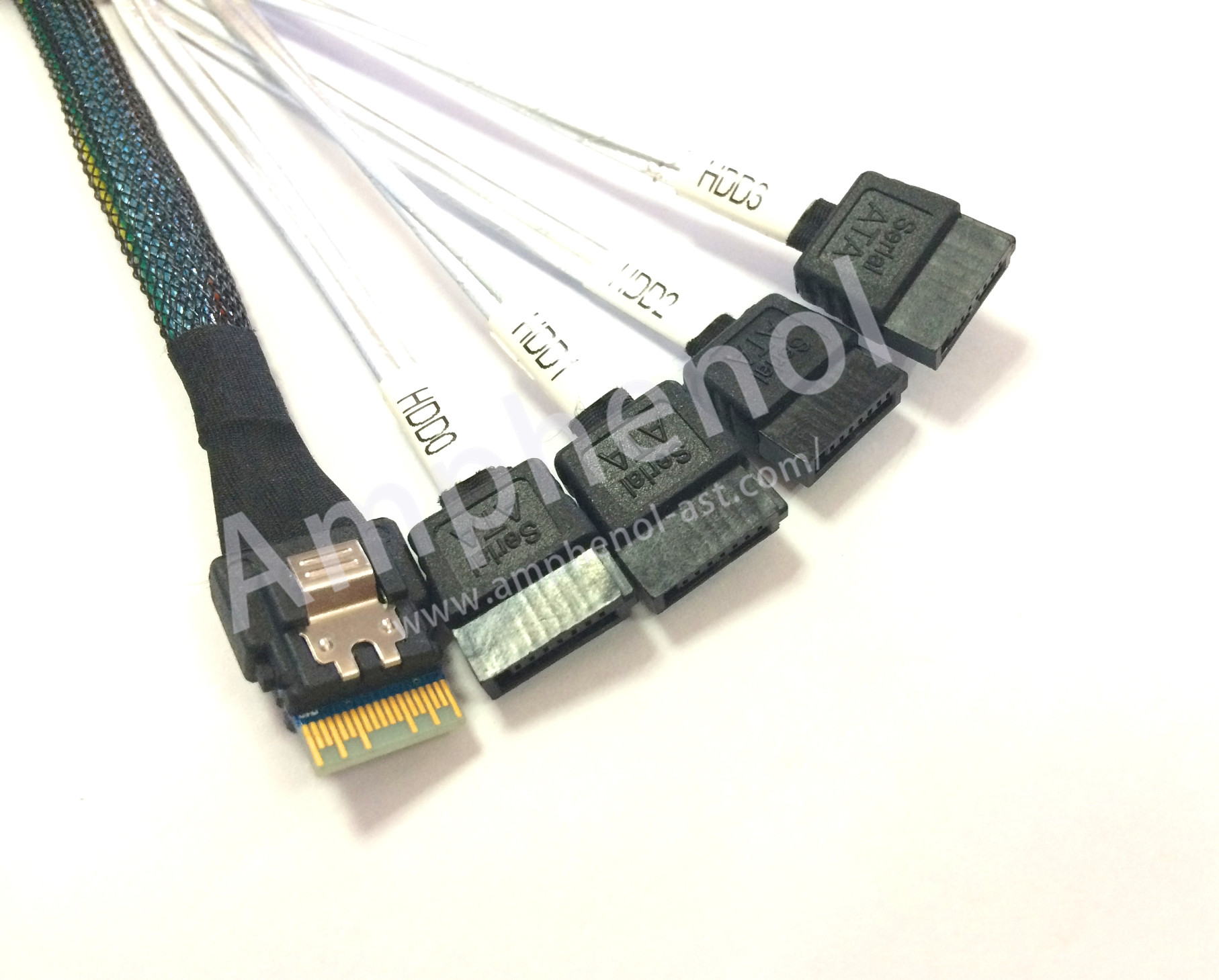

1. Ultraport SlimSAS 4i plug
Mating Force: 150N maximum
Unmating Force: 50N maximum
Rated durability cycles: 250 cycles minimum
2. SATA 7Pos connector
Mating Force: 45N maximum
Unmating Force: 10N maximum
Rated durability cycles: 50 cycles minimum
Electrical Performance
1. Voltage: 30VDC per contact
Ultraport SlimSAS 4i plug: 80mohm max. initial, 20mohm maximum after stress test.
SAS 22Pos connector: 30mohm max. initial, 15mohm maximum after stress test.
2. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
3. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. Mated Connector Impedance: 100+/-10% ohm
2. Common Mode Impedance: meet SATA3.0 specification
3. Insertion loss: meet SATA3.0 specification,
4. Maximum Crosstalk: meet SATA3.0 specification
Product Environmental Compliance
RoHS2.0: Compliant
ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
|
