Applications

1. Data center & Networking Equipment

2. Servers/Storage Devices

3. High Performance Computing (HPC)

4. Switches/Routers

5. Wireless Base Stations and Radios

Features and Benefits

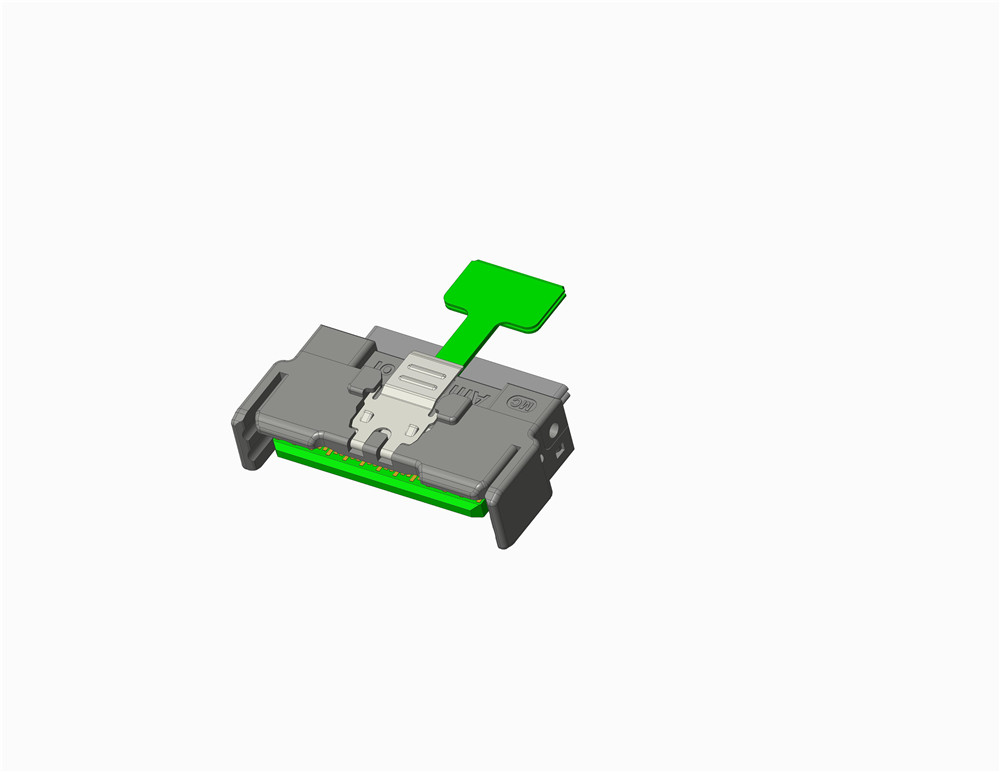

1. Pull tab help connector release easily in narrow space

2. Pitch 0.6mm 95 ohm impedance connector design
3. 1.57mm PCB card thickness compatible with PCIe riser card

4. 8X12X(74pin) available; 4X(38pin), 8X(50pin), 16X(100pin),16X/20X(124pin) and 24X(148pin) connectors can be tooled on request

6. Support signaling rates up to PCIe5 32GT/s, 56 GT/s NRZ and 112 GT/s PAM-4

7. Support chip to chip and chip to external IO application
7. 30-34AWG cable

Mechanical Performance

1. Mating Force: 55.5N maximum

2. Unmating Force: 49N maximum

3. Rated durability cycles: 250 cycles minimum

Electrical Performance

1. Voltage: 30VAC per contact

2. Current: 0.5A per contact

3. Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5. Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity

1. Mated Connector Impedance: 85+/-10% ohm @25ps RT

2. SCD21: meet SAS4.0 and PCIe4.0

3. FEXT: meet SAS4.0 and PCIe4.0

4. NEXT: meet SAS4.0 and PCIe4.0

5. Insertion loss: meet SAS4.0 and PCIe4.0

Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed

Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
